(25[2]) - ACTUATOR ASSEMBLY

Запчасти Case IH 8440 (25[2]) - ACTUATOR ASSEMBLY (06) - ELECTRICAL

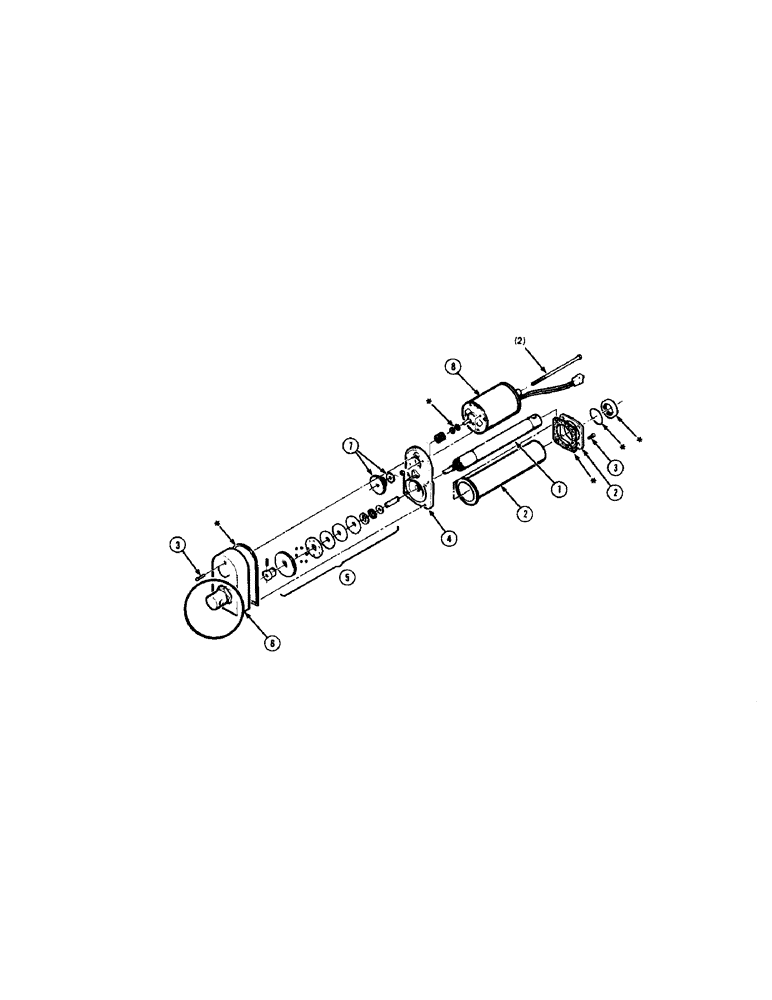

Схема запчастей Case IH 8440 - (25[2]) - ACTUATOR ASSEMBLY (06) - ELECTRICAL
3
1
3
4
2
2
6
8
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704928

SCREW

JACKSCREW AND BRAKE ASSEMBLY

1шт.

2

700704926

TUBE

- cover

1шт.

3

1714088

SCREW - special (5)

1шт.

4

700704853

HOUSING

- front

1шт.

5

700704927

CLUTCH

- assembly

1шт.

6

700704854

HOUSING

- rear

1шт.

7

700704861

GEAR

(INTERMEDIATE) AND WASHER

1шт.

8

700704871

MOTOR, ELECTRIC

MOTOR

1шт.

700704856

SEAL KIT

O-RING AND SEAL REPAIR KIT, Includes items in art marked with asterisk.

1шт.

There is a kit # 1661330 for items 1 thru 16.

1шт.
