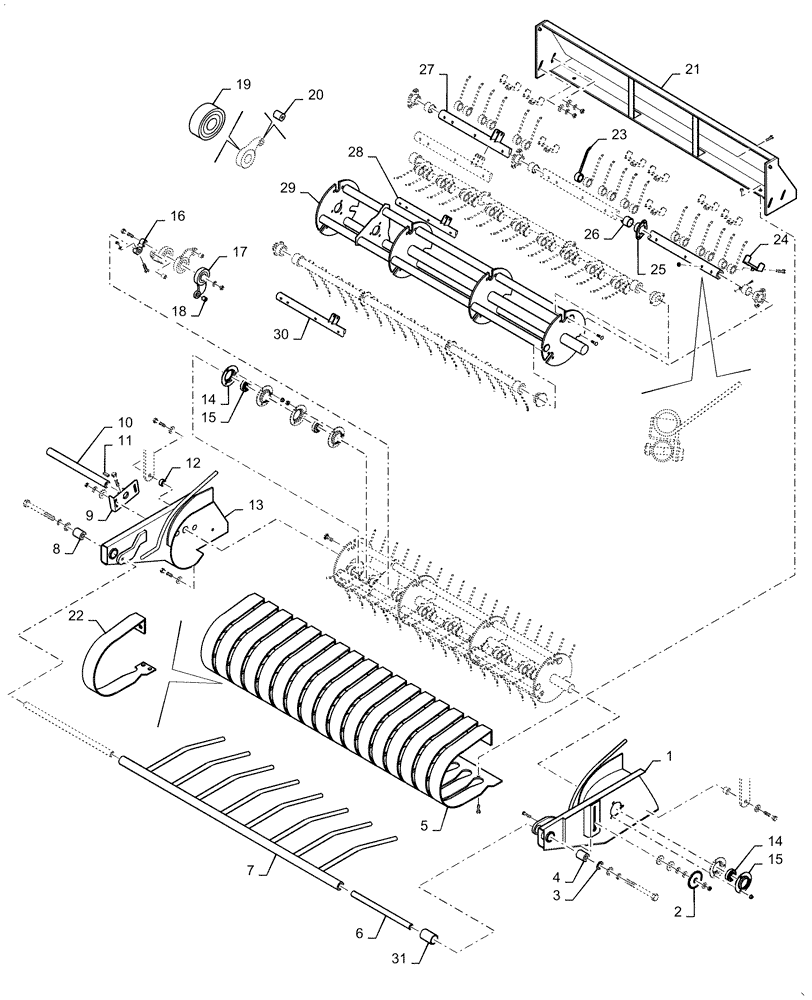

Запчасти Case IH 8440 (10[1]) - PICKUP ASSEMBLY Pickup

1

700100943

MOUNTING PARTS

MOUNT - left

1шт.

2

87973

GROOVED PIN

SPROCKET - idler, 50-P, 17-TOOTH

1шт.

3

852087

BUSHING

3/4 x 10 MACHINERY BUSHING

4шт.

4

6546923

BUSHING

- pivot, left, 35/16 I.D. x 4-19/32" long

1шт.

5

6546899

SUPPORT

WRAPPER

1шт.

6

6546329

PIPE

- pivot

1шт.

7

6546584

GUARD

WIND GUARD

1шт.

8

6546931

BUSHING

- pivot, right, 13/16 I.D. x 4-3/16" long

1шт.

9

6546741

BRACKET

1шт.

10

6546915

SHAFT

- control

1шт.

11

61069

KEY

1/4 x 1/4 x 1 STRAIGHT KEY

1шт.

12

6287155

SPACER

2шт.

13

700100944

MOUNTING PARTS

MOUNT - right

1шт.

14

50534

FLANGED BEARING

6шт.

15

700708095

SPHERICAL BEARING

BEARING - spherical

3шт.

16

407171

CRANK

1шт.

17

7714165

HOUSING ASSY.

BEARING - arm, control

3шт.

18

311910

BUSHING

3/8 I.D. x 3/4" long

3шт.

19

711762

SPHERICAL BEARING,19.05 mm ID x 47 mm OD x 30.96 mm

BEARING - control arm

3шт.

20

51200823

BUSHING

OILITE BUSHING - control arm, 5/8 I.D. x 5/8" long

3шт.

21

6546774

SUPPORT

1шт.

22

6567325

SUPPORT

WRAPPER - replacement

17шт.

23

1711951

TINE

- double

27шт.

24

6546576

SUPPORT

- tine, double

27шт.

25

6157879

BEARING HOUSING

- bearing, tine tube

12шт.

26

6105159

NYLON BEARING,1.75"

BEARING - tine tube

12шт.

27

6546543

TINE

TUBE "B"

1шт.

28

6546535

TINE

TUBE "A"

1шт.

Item#28, Measured from outside of pipe to inside of 1st weldment.

1шт.

29

6546832

ROTOR ASSY.

PICKUP

1шт.

30

6546550

TINE

TUBE "C"

1шт.

31

6370258

PIPE

SPACER, 1-1/8 I.D. x 1-3/4" long

1шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 HEX CAP SCREW GRADE 5

12шт.

703603

SCREW

3/8-16 x 1-1/2 HEX CAP SCREW GRADE 5

6шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 HEX CAP SCREW GRADE 5

27шт.

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 HEX CAP SCREW GRADE 5

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 HEX CAP SCREW GRADE 5

4шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 HEX CAP SCREW GRADE 5

2шт.

703660

BOLT,Hex 3/4" - 10 x 5", Gr 5

3/4-10 x 5 HEX CAP SCREW GRADE 5

1шт.

7701535

CAPSCREW,3/4" - 10 x 6", Gr 5

3/4-10 x 6 HEX CAP SCREW GRADE 5

1шт.

7883069

HARDWARE

3/4-10 x 8 HEX CAP SCREW GRADE 5

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

24шт.

700047

BOLT

3/8-16 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5

10шт.

7870173

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

1шт.

70714

SCREW

3/8-16 x 1 CROSS RECESS TRUSS HEAD MACHINE SCREW

4шт.

88902

NUT,3/8"-16

3/8-16 HEX CENTER LOCK NUT

30шт.

704213

NUT

3/8-16 HEX TOP LOCK NUT

1шт.

430-4214

1/4-20 HEX CENTER LOCK NUT

12шт.

704791

LOCK NUT

3/4-10 HCLN

1шт.

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 WIDE PLAIN WASHER

1шт.
