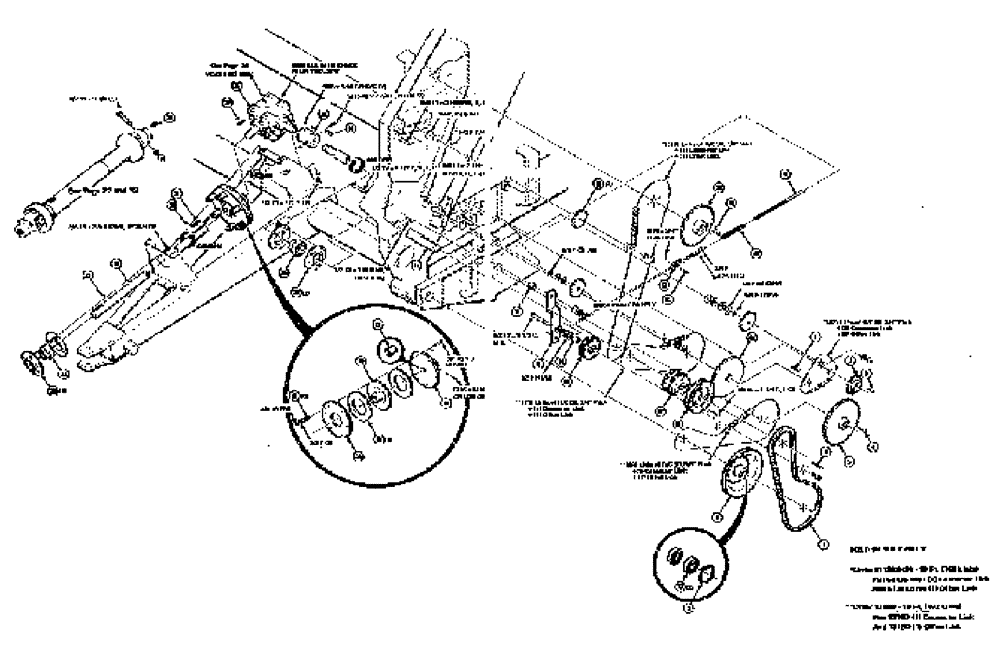

Запчасти Case IH 8440 (08[1]) - DRIVE ASSEMBLY Driveline

1

61747

KEY

1/2 x 1/2 x 2-1/2 GIB HEAD KEY

1шт.

2

850875

PINION

SPROCKET - 15-tooth

1шт.

3

61432

BUCKET TOOTH KEY

3/8 x 3/8 x 1-1/2 GIB HEAD KEY

1шт.

4

761155

BUCKET TOOTH KEY

1/4 x 1/4 x 2 GIB HEAD KEY

1шт.

5

6549414

SPROCKET ASSY.

SPROCKET, 50-P, 45-tooth

1шт.

6

61564

KEY

3/8 x 3/8 x 2-1/4 GIB HEAD KEY

1шт.

7

855064

V-BELT,0.88" W x 69.00" L

1шт.

8

6549380

SHEAVE

AND SPROCKET ASSEMBLY (INCLUDES BEARING AND SNAP RING)

1шт.

9

740712

OIL SEAL

SNAP RING

1шт.

10

712604

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

2шт.

11

6549422

SHEAVE

7" dia.

1шт.

12

6549273

SPROCKET ASSY.

SPROCKET - double, 60-pitch, 20 tooth

1шт.

13

054007

PULLEY

FLAT IDLER, 4-5/8" dia., Pulley

1шт.

14

147298

BUSHING

SPACER, 1-1/4" long

1шт.

15

6549448

BRACKET

1шт.

16

6472948

BELT

TUBE, 1-1/4" long

1шт.

17

6549265

SHAFT

1шт.

18

6549315

DISC

slip clutch

1шт.

19

700709463

DISC

CLUTCH DISC

2шт.

20

6248173

LARGE PLATE

PRESSURE PLATE, slip clutch

1шт.

21

58107

SPRING

COMPRESSION SPRING, slip clutch

6шт.

22

6549299

DISC

slip clutch

1шт.

23

52779

BRONZE BUSHING

OILITE BUSHING, 1-1/4 I.D. x 1" long

1шт.

24

663562R1

FLANGE

TTE

2шт.

25

712059

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 21 mm

BEARING

1шт.

26

617863R1

FLANGED BEARING

2шт.

27

455104R11

COLLAR

BEARING

1шт.

28

763276

LOCK PIN,1/8" x 1 1/2", Slotted

Pin, 1/8" x 1 1/2", Slotted

1шт.

29

6549240

SHAFT

- primary

1шт.

30

438-11232

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

31

761122

KEY

5/16 x 5/16 x 2 STRAIGHT KEY

1шт.

32

6565857

SHIM

1шт.

33

761122

KEY

5/16 x 5/16 x 2 STRAIGHT KEY

1шт.

34

61101

KEY

1/4 x 1/4 x 1-3/4 STRAIGHT KEY

1шт.

35

7895113

GEARBOX ASSY

GEARBOX

1шт.

36

6549257

HUB

1шт.

37

761114

BUCKET TOOTH KEY

1/4 x 1/4 x 3-5/8 STRAIGHT KEY

1шт.

38

541857R92

SPROCKET,15T

- idler

3шт.

39

850883

SPROCKET ASSY.

SPROCKET, 60-pitch, 36-tooth

1шт.

40

61572

BUCKET TOOTH KEY

3/8 x 3/8 x 1-3/4 GIB HEAD KEY

1шт.

41

6549430

ROD

1шт.

42

7758261

COMPRESSION SPRING

1шт.

43

66191

CLEVIS

1шт.

44

063586

CLEVIS PIN

3/8 x 1-1/8 CLEVIS PIN

1шт.

45

6549349

SPROCKET ASSY.

SPROCKET - double, 60-P, 30-tooth and 18-tooth

1шт.

178-878

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

5/16 x 5/16 CUP PINT HEX SOCKET SET SCREW (SELF-LOCKING)

4шт.

74781

NUT

1/2-13 x 2-3/4 HEX CAP SCREW GRADE 5

6шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 HEX CAP SCREW GRADE 5

3шт.

703223

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2-13 x 4-1/2 HEX CAP SCREW GRADE 5

1шт.

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 x 2-3/4 HEX CAP SCREW GRADE 5

1шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 HEX CAP SCREW GRADE 5

2шт.

704163

LOCK NUT

5/16-18 HEX TOP LOCK NUT

1шт.

773374

BOLT,Hex, 1/2" x 3 1/2", Gr 5

1/2-13 x 3-1/2 HEX CAP SCREW GRADE 5

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

3шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5

4шт.

703769

SCREW

5/16-18 x 2-3/4 HEX CAP SCREW GRADE 5

1шт.

7770480

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

3/8-16 x 3 ROUND HEAD SQUARE NECK BOLT GRADE 5

6шт.

7870165

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 ROUND HEAD SQUARE NECK BOLT GRADE 5

1шт.

7870173

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5

2шт.
