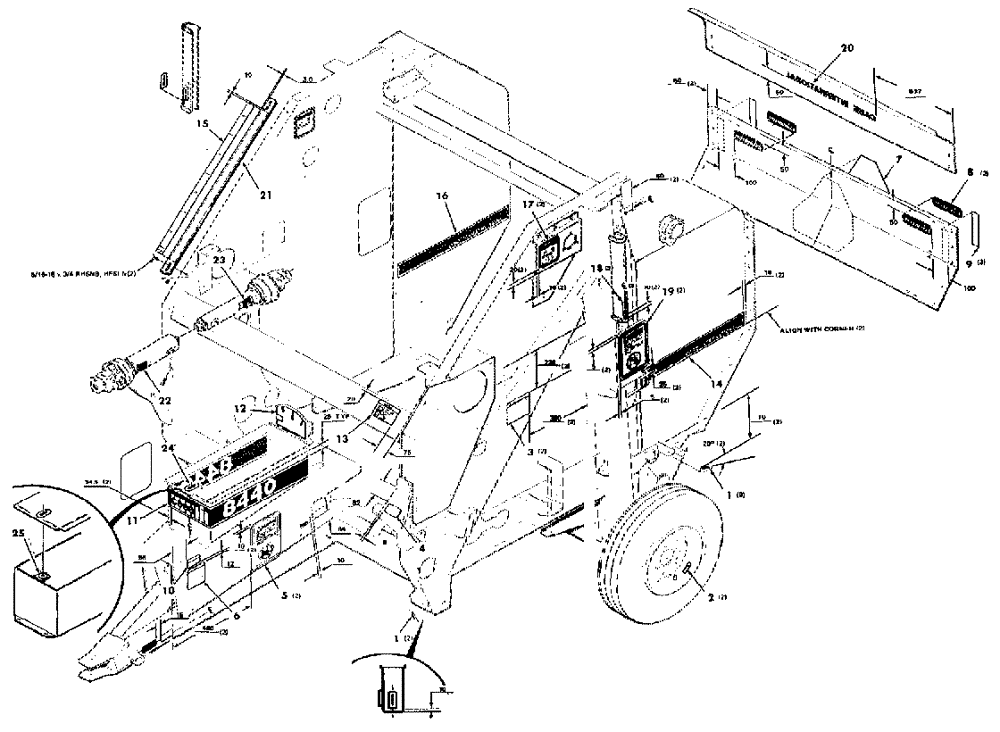

Запчасти Case IH 8440 (30[1]) - DECALS AND LOCATION DIAGRAM Decals & Attachments

1

7889306

DECAL

- grease symbol

11шт.

2

779694

DECAL

- tire pressure

2шт.

3

78311

DECAL

- caution, keep all shields...

2шт.

4

7778202

DECAL

- oil

1шт.

5

8888398

DECAL

- danger

2шт.

6

878157

DECAL

- notice, adjust tractor drawbar...

1шт.

7

779355

EMBLEM CASE/IH

DECAL - SMV

1шт.

8

700706191

DECAL

- warning, to prevent personal...

2шт.

9

878660

REFLECTOR

2шт.

10

7078256

DECAL

- notice, operate at...

1шт.

11

1976003C1

DECAL

- combo, front

1шт.

12

7889314

DECAL

- indicator

1шт.

13

7889645

DECAL

- notice, optimum PTO...

1шт.

14

1976004C1

DECAL

- combo, left rear

1шт.

15

7889322

DECAL

- bale size

1шт.

16

1976005C1

DECAL

- combo, right rear

1шт.

17

700707845

DECAL

DANGER, keep away from...

2шт.

18

700706023

DECAL

- safety stop

2шт.

19

8888380

DECAL

- danger, tailgate moves faster...

2шт.

20

1973424C1

DECAL

- CASE INTERNATIONAL

1шт.

21

6546204

STRAP

- indicator (with decal)

1шт.

22

700707960

DECAL

- danger, driveline

1шт.

23

700708583

DECAL

- DANGER, driveline

1шт.

24

700709867

DECAL

- slot, camloc

1шт.

25

700709866

WASHER

- washer, camloc

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 ROUND HEAD SQUARE NECK BOLT

2шт.
