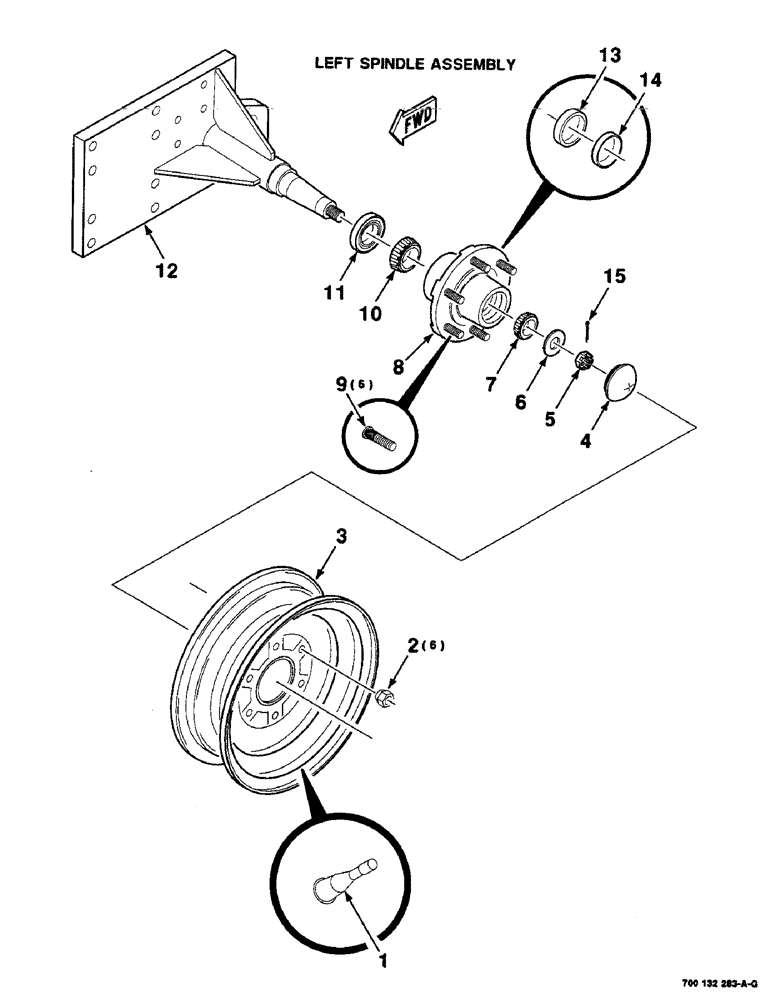

Запчасти Case IH 8435 (7-34) - WHEEL, HUB AND SPINDLE ASSEMBLY, LEFT (12) - MAIN FRAME

1

A38261

VALVE

STEM - valve

1шт.

2

G49041

WHEEL NUT

9/16-18 WHEEL NUT

6шт.

3

700707982

RIM

WHEEL, 13.5 - high flotation (includes item 1)

1шт.

4

518842R1

CAP

HUB - cap

1шт.

5

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SLOTTED HEX NUT

1шт.

6

26971

WASHER

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone, outer

1шт.

8

700709830

HUB

ASSEMBLY (includes items 9, 13 and 14)

1шт.

9

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 X 2.12 BOLT - wheel

6шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - cone, inner

1шт.

11

844050

SEAL

1шт.

12

700132284

SPINDLE

WA - left

1шт.

13

663558R1

BEARING CUP

CUP - inner

1шт.

14

651817R1

BEARING CUP

CUP - outer

1шт.

15

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.
