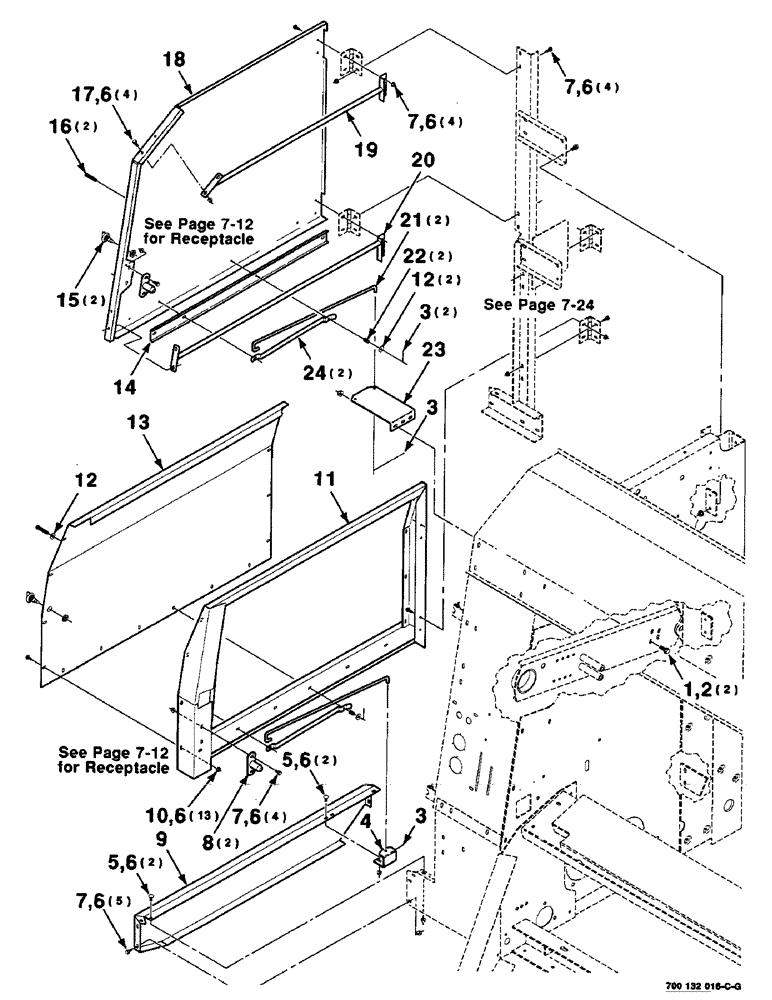

Запчасти Case IH 8435 (7-30) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, RIGHT, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

4

700132502

ANCHOR

- lower

1шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

38шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

17шт.

8

700117058

SUPPORT

PIN - locating

2шт.

9

700132493

SHIELD

- lower, right

1шт.

10

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRPHMS GR 60M

13шт.

11

700133814

SHIELD

ASSEMBLY - lower, right (includes decal)

1шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

3шт.

13

700133803

SHIELD

ASSEMBLY - lower, right (includes decal)

1шт.

14

700132503

CHANNEL

1шт.

15

700714706

LATCH

- 90 degree turn

2шт.

16

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

2шт.

17

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

18

700132489

SHIELD

- upper, right

1шт.

19

700132534

BRACE

- wa, right, upper

1шт.

20

700132537

BRACE

- wa, right, lower

1шт.

21

700117067

SUPPORT

ROD - support

2шт.

22

754606

SPRING

- compression

2шт.

23

700132501

ANCHOR

- upper

1шт.

24

700117061

LATCH

2шт.
