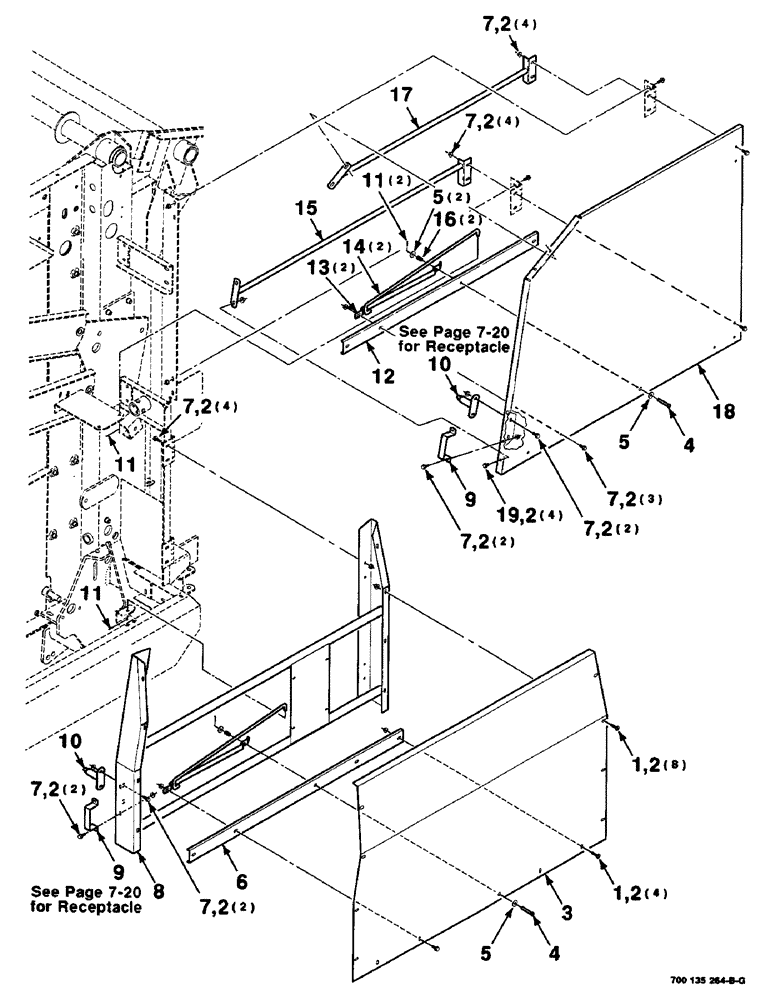

Запчасти Case IH 8435 (7-28) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, LEFT, SERIAL NUMBER CFH0124401 AND LATER (12) - MAIN FRAME

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 X 3/4 CRPHMS GR 60M

12шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

39шт.

3

700135877

SHIELD

- lower, left

1шт.

4

439-5532

HEADED PIN,5/16" x 2"

5/16 X 2 CLEVIS PIN

2шт.

5

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

6

700147586

CHANNEL

1шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

23шт.

8

700147550

SHIELD

WA - lower, left

1шт.

9

700135650

HANDLE

2шт.

10

700135648

PIN

WA

2шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

12

700132503

CHANNEL

1шт.

13

700117061

LATCH

2шт.

14

700117067

SUPPORT

2шт.

15

700132535

BRACE

WA - left, lower

1шт.

16

754606

SPRING

- compression

2шт.

17

700132529

BRACE

WA - left, upper

1шт.

18

700135957

SHIELD

- upper, left

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
