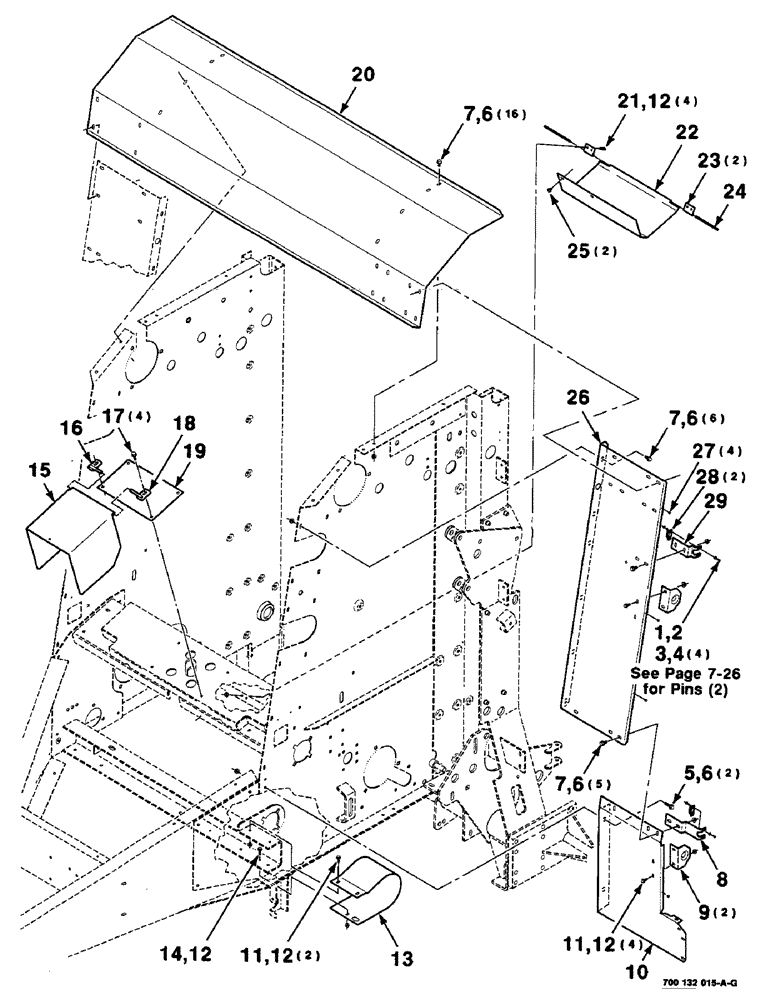

Запчасти Case IH 8435 (7-18) - TONGUE SHIELDS AND LATCH SUPPORT ASSEMBLIES, LEFT, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (12) - MAIN FRAME

1

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR 60M

4шт.

2

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

4

225-14110

NUT,#10-24

4шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

29шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

27шт.

8

700132467

SUPPORT

- latch

1шт.

9

700117068

SUPPORT

2шт.

10

700132470

SHIELD

- lower, left (includes decal)

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

11шт.

13

700135132

SHIELD

1шт.

14

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

1шт.

15

700132466

SHIELD

1шт.

16

700132465

HINGE

WA - right

1шт.

17

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

18

700132462

HINGE

WA - left

1шт.

19

700135157

COVER

1шт.

20

700132486

SUPPORT

- upper

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

22

700132487

SHIELD

1шт.

23

700132460

SUPPORT

- hinge

2шт.

24

700115914

PIN

1шт.

25

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

5/16-18 X 1/2 HWHTCTS

2шт.

26

700133810

SHIELD

ASSEMBLY - upper, left (includes decals)

1шт.

27

700715104

BUMPER

4шт.

28

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

29

700132526

SUPPORT

- latch

1шт.
