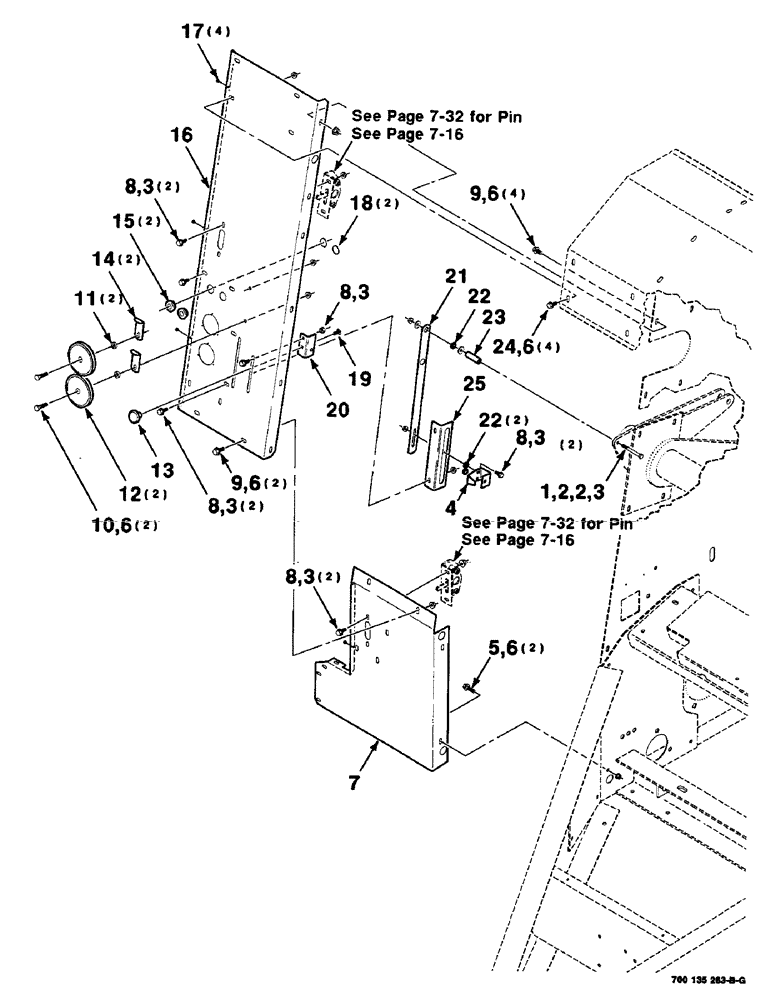

Запчасти Case IH 8435 (7-14) - SHIELD, LATCH AND BALE INDICATOR ASSEMBLIES, RIGHT, SERIAL NUMBER CFH0124401 AND LATER (12) - MAIN FRAME

1

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

2

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

4

700115976

INDICATOR

1шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

7

700147589

SHIELD

- lower, right

1шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

6шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

700116106

SPACER

2шт.

12

700714888

PULLEY

2шт.

13

700707234

BUTTON

KNOB

1шт.

14

700132485

GUIDE

2шт.

15

700107977

GUIDE

- twine

2шт.

16

700135965

SHIELD

- upper, right

1шт.

17

700715104

BUMPER

4шт.

18

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

20

700115974

SUPPORT

- switch

1шт.

21

700132482

LINK

1шт.

22

700115973

SPACER

3шт.

23

700132481

SPACER

1шт.

24

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

25

700132479

ANGLE

1шт.
