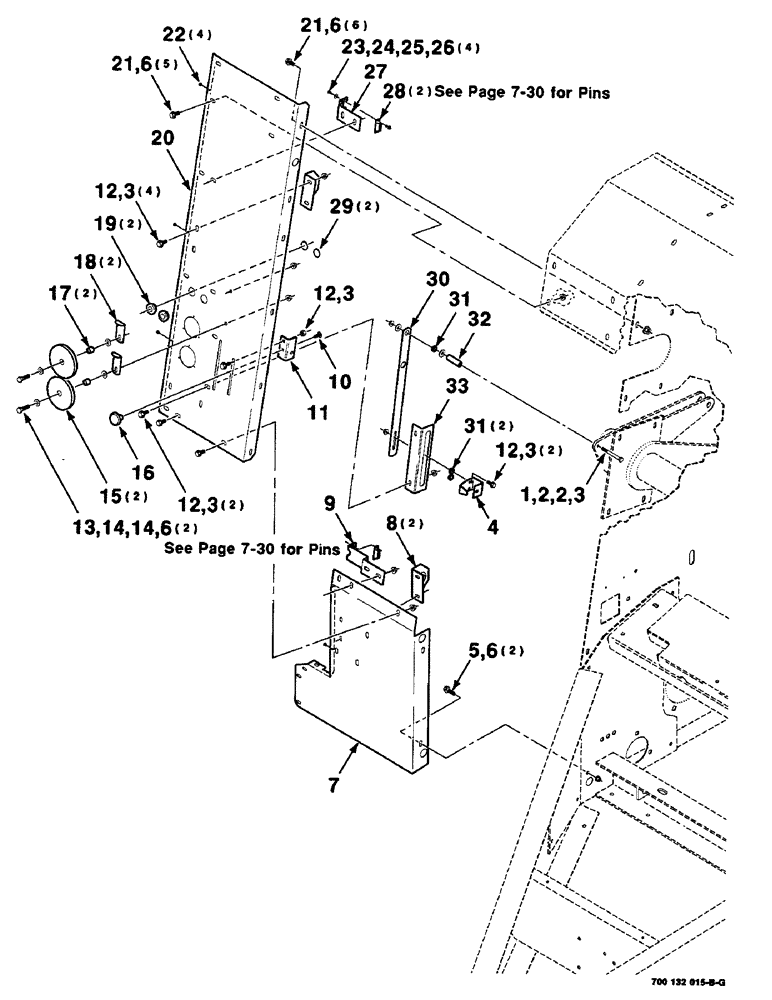

Запчасти Case IH 8435 (7-12) - SHIELD, LATCH AND BALE INDICATOR ASSEMBLIES, RIGHT, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (12) - MAIN FRAME

1

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

2

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

10шт.

4

700115976

INDICATOR

1шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

15шт.

7

700132471

SHIELD

- lower, right

1шт.

8

700117068

SUPPORT

2шт.

9

700132467

SUPPORT

- latch

1шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

11

700115974

SUPPORT

- switch

1шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

495-21044

WASHER,3/8"

4шт.

15

700714888

PULLEY

2шт.

16

700707234

BUTTON

KNOB

1шт.

17

568395R1

SPACER,5/8" Tube x 5/8"

2шт.

18

700132485

GUIDE

- wa

2шт.

19

700107977

GUIDE

- twine

2шт.

20

700132469

SHIELD

- upper, right

1шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

11шт.

22

700715104

BUMPER

4шт.

23

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR 60M

4шт.

24

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

25

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

26

225-14110

NUT,#10-24

4шт.

27

700132526

SUPPORT

- latch

1шт.

28

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

29

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

30

700132482

LINK

1шт.

31

700115973

SPACER

3шт.

32

700132481

SPACER

1шт.

33

700132479

ANGLE

1шт.
