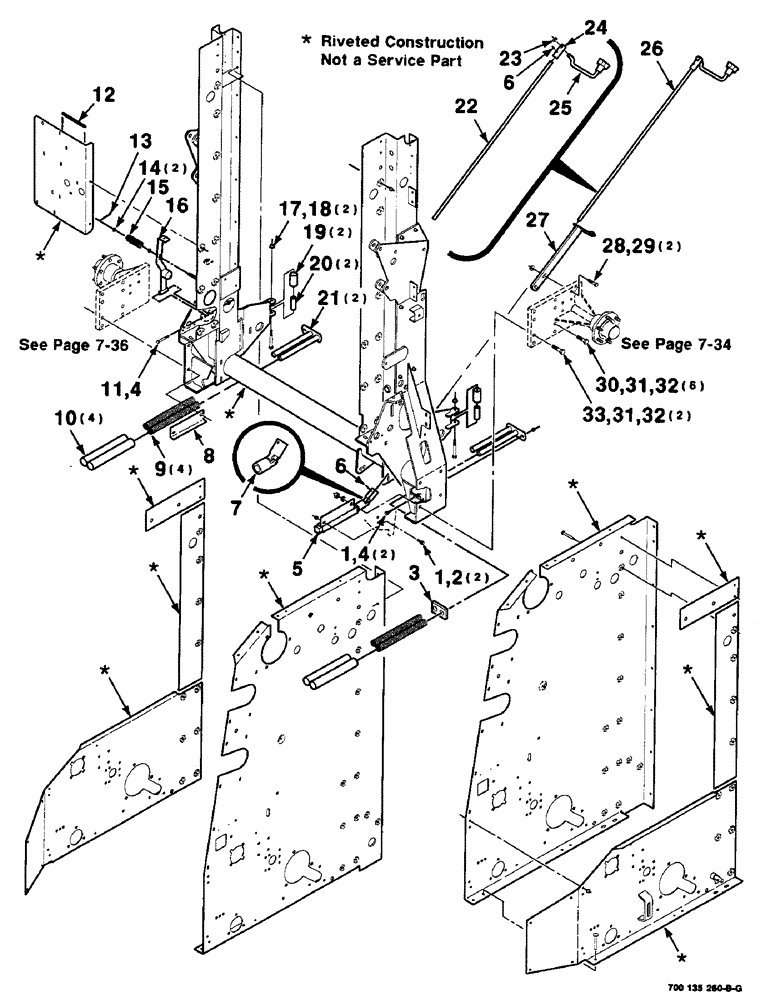

Запчасти Case IH 8435 (7-10) - MAINFRAME, AXLE AND PICKUP CRANK ASSEMBLIES, SERIAL NUMBER CFH0124401 AND LATER (12) - MAIN FRAME

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

2

231-5146

FLANGE NUT,3/8"-16

2шт.

3

700147575

SPACER

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

5

700715738

JACK

ASSEMBLY (includes item 7)

1шт.

6

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

2шт.

7

700715754

JOINT

U-JOINT

1шт.

8

700132319

ANGLE

1шт.

9

700716912

SPRING

- compression

4шт.

10

700135993

TUBE

- wa

4шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

12

1117746

ORNAMENTAL STRIP

TRIM - edge

1шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

15

700707978

SPRING

- compression

1шт.

16

700135980

SUPPORT

WA

1шт.

17

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

18

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

19

700132293

TUBE,38.1 mm OD, 66 mm Length

- roller

2шт.

20

6250351

SPACER

2шт.

21

700135990

GUIDE

- wa

2шт.

22

700132317

CRANK

ROD - crank

1шт.

23

51200194

RETAINER

RING - retaining

1шт.

24

700132516

TUBE

1шт.

25

700715780

HANDLE

1шт.

26

700715760

CRANK

- assembly

1шт.

27

700132318

SUPPORT

- wa

1шт.

28

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

6шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

32

425-1010

NUT,5/8"-11, G5

8шт.

33

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.
