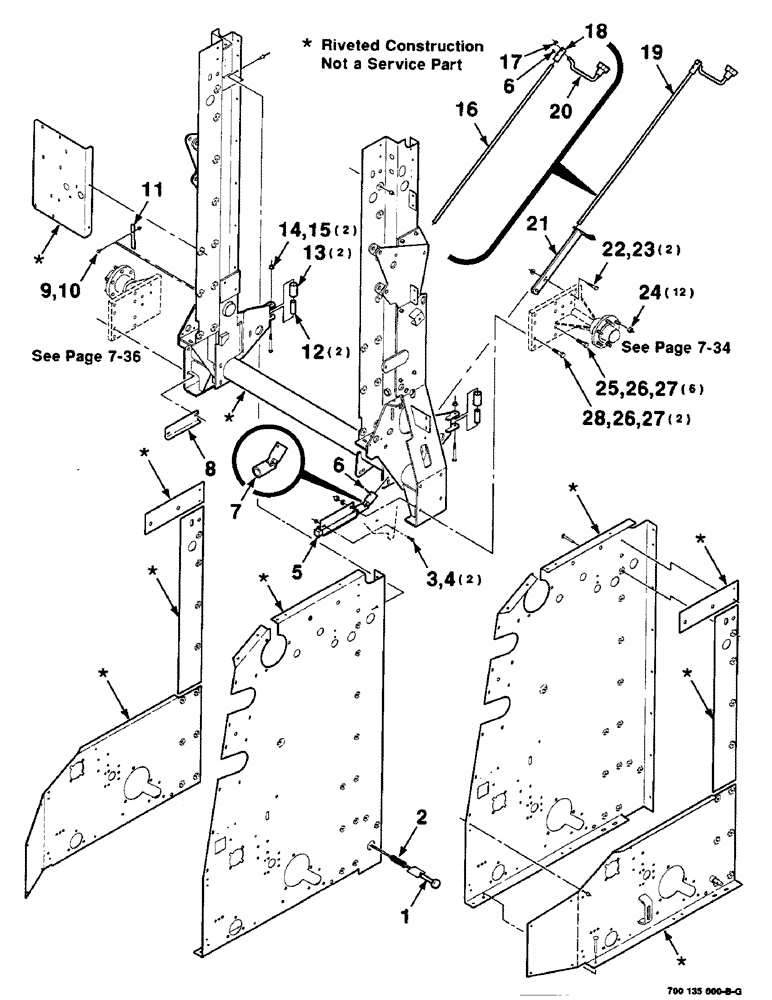

Запчасти Case IH 8435 (7-08) - MAINFRAME, AXLE AND PICKUP CRANK ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (12) - MAIN FRAME

1

700132294

SUPPORT

WA

1шт.

2

700716065

SPRING

- compression

1шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

700715738

JACK

ASSEMBLY (includes item 7)

1шт.

6

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

2шт.

7

700715754

JOINT

U-JOINT

1шт.

8

700132319

ANGLE

1шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

11

700132310

PLATE

1шт.

12

6250351

SPACER

2шт.

13

700132293

TUBE,38.1 mm OD, 66 mm Length

- roller

2шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

15

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

16

700132317

CRANK

ROD - crank

1шт.

17

775015

SHIM

RING - retaining

1шт.

18

700132516

TUBE

1шт.

19

700715760

CRANK

- assembly

1шт.

20

700715780

HANDLE

1шт.

21

700132318

SUPPORT

- wa

1шт.

22

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

23

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

24

G49041

WHEEL NUT

9/16-18 WHEEL NUT

12шт.

25

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

6шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

27

425-1010

NUT,5/8"-11, G5

8шт.

28

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.
