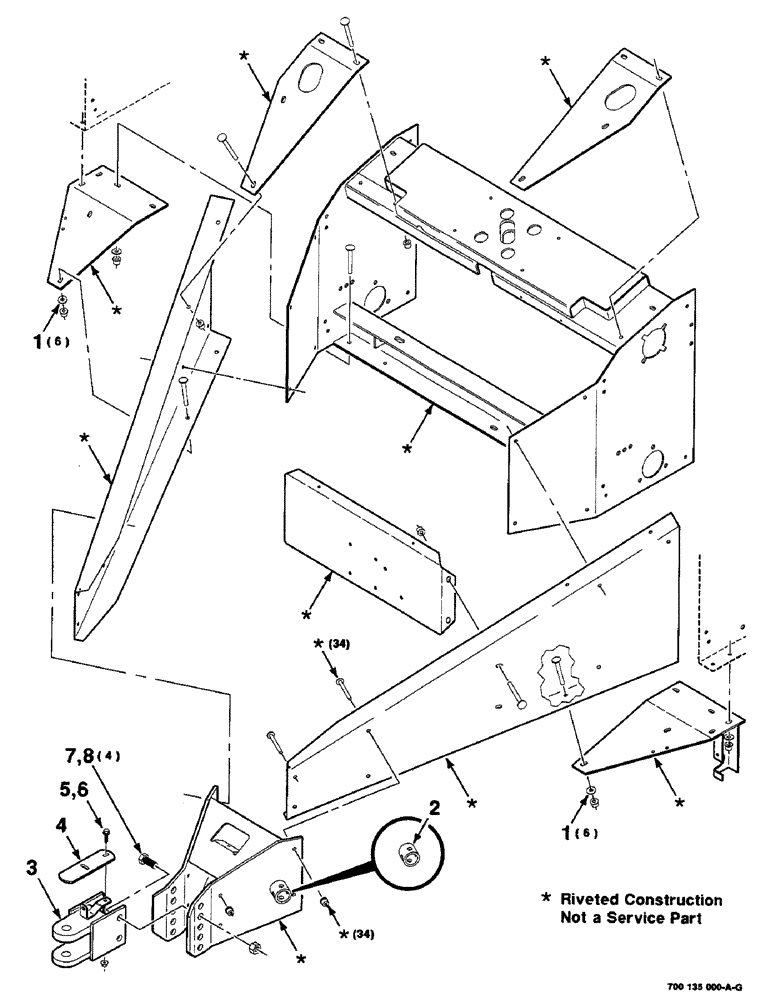

Запчасти Case IH 8435 (7-04) - HITCH AND TONGUE ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (12) - MAIN FRAME

1

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

12шт.

2

6227391

TUBE,2" OD, 1.88" Length

- jack

1шт.

3

700132297

TRAILER HITCH

HITCH WA

1шт.

4

700132315

PLATE

1шт.

5

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

7

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 x 1-3/4 C

4шт.

8

230-41112

LOCK NUT,3/4"-10, GA

3/4-10 HTLN GR/B

4шт.
