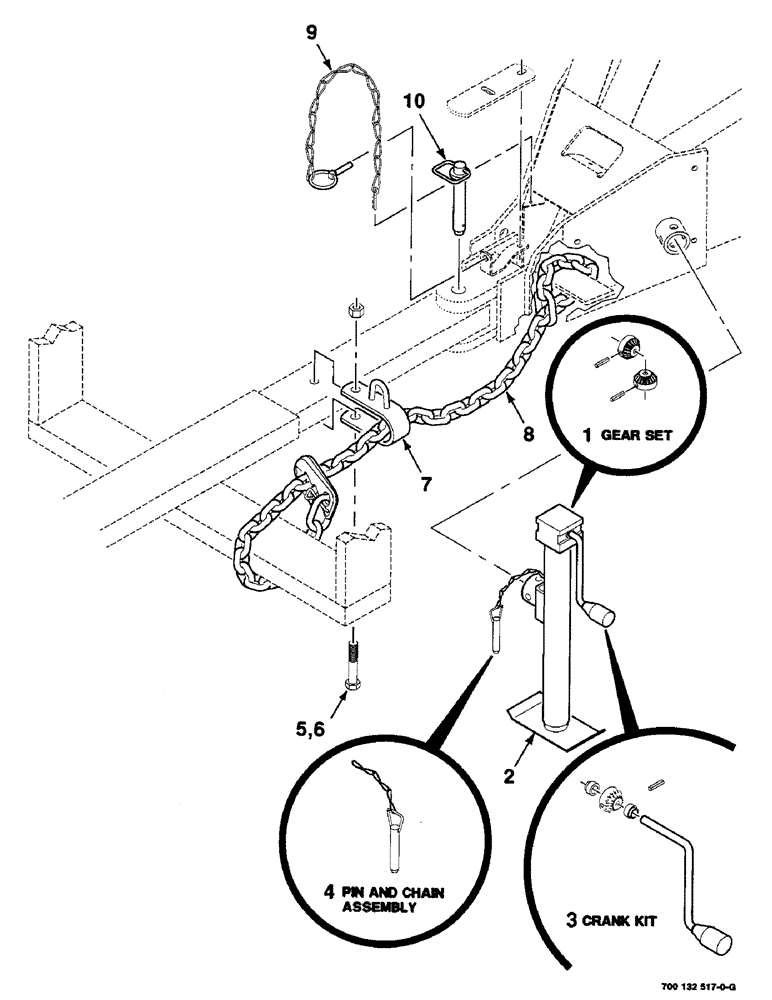

Запчасти Case IH 8435 (7-02) - SAFETY CHAIN AND JACK ASSEMBLIES (12) - MAIN FRAME

1

700702059

KIT

GEAR SET

1шт.

2

700709385

JACK

Assy (Incl. items 1, 3 & 4)

1шт.

3

700702060

CRANKED HANDLE

CRANK KIT

1шт.

4

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

6

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

7

700147598

CLEVIS

- safety

1шт.

8

700705598

CHAIN (CE)

CHAIN - safety

1шт.

9

63768

PIN

- linch

1шт.

10

700715077

PIN

- hitch

1шт.
