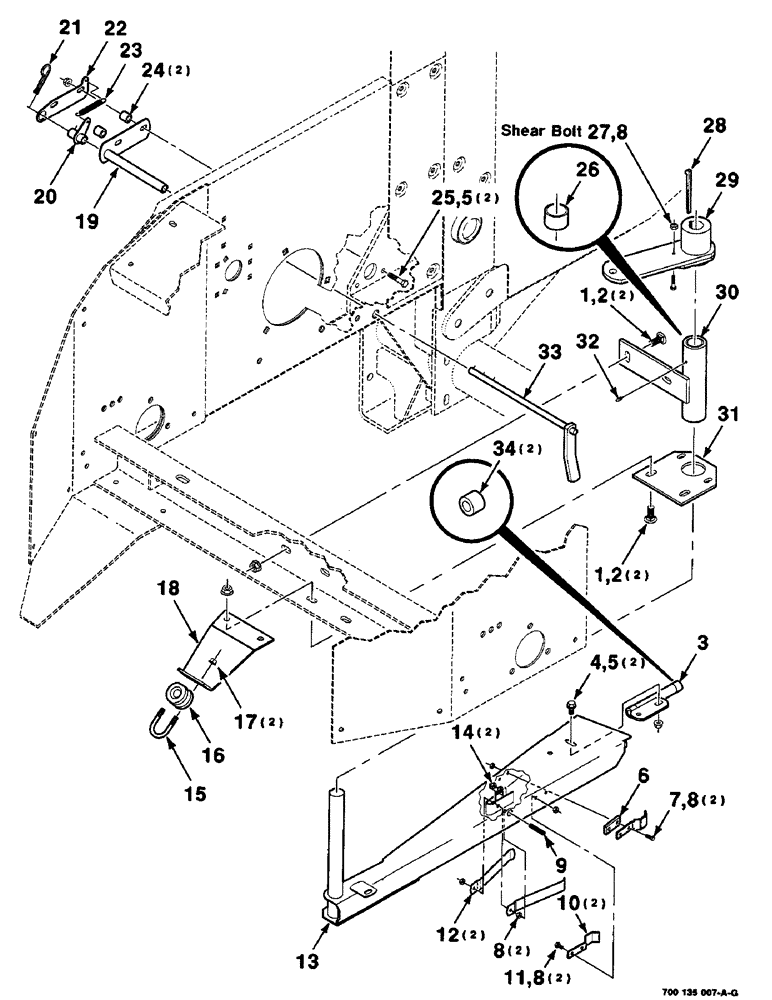

Запчасти Case IH 8435 (6-18) - TWINE THREADER ASSEMBLY (12) - MAIN FRAME

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

3

700132413

ARM

WA - twine (includes item 34)

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

700132412

PLATE

1шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

7шт.

9

700135164

ROD

- threaded, 1/4-20

1шт.

10

700122987

GUIDE

- twine

2шт.

11

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

12

700707665

LARGE PLATE

SPRING - leaf

2шт.

13

700132417

ARM

WA - twine

1шт.

14

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

15

766543

SCREW

1шт.

16

7745003

GUIDE

1шт.

17

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

18

700132520

PLATE

1шт.

19

700135086

SUPPORT

WA

1шт.

20

700135090

LEVER

WA

1шт.

21

S120261

PIN

.148 WIRE HAIR PIN COTTER

1шт.

22

700135093

PLATE

1шт.

23

700707432

SPRING

- extension

1шт.

24

6869382

SPACER

2шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

52779

BRONZE BUSHING

BUSHING - bronze

1шт.

28

761452

KEY

5/16 X 5/16 X 3-1/4 GIB KEY

1шт.

29

700132428

ARM

ASM. (S.N. CFH0124001 thru CFH0124137) (includes items 27 and 8)

1шт.

700136004

ARM

ASSEMBLY (S.N. CFH0124401 and later) (includes items 27 and 8)

1шт.

30

700132424

SUPPORT

ASSEMBLY (includes item 26)

1шт.

31

700132427

PLATE

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

33

700147572

GUIDE

WA - right

1шт.

34

700107983

GUIDE

- twine

2шт.

27

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
