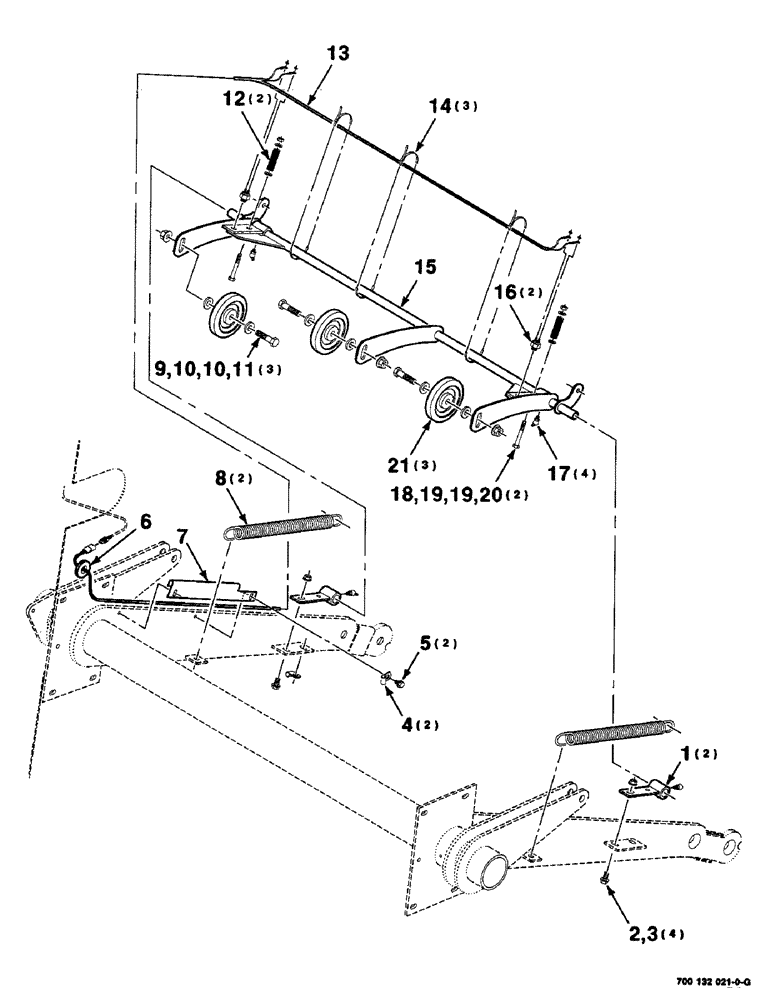

Запчасти Case IH 8435 (6-16) - BALE SHAPE MONITOR ASSEMBLY (12) - MAIN FRAME

1

700132176

SUPPORT

WA

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

7827983

GROMMET

1шт.

7

700132519

COVER

- wire

1шт.

8

700710130

SPRING

- extension

2шт.

9

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

10

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

6шт.

11

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

3шт.

12

7058266

SPRING

- compression

2шт.

13

700716007

HARNESS

- wire

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

15

700132168

SUPPORT

WA

1шт.

16

8025637

SWITCH

2шт.

17

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

4шт.

18

703769

SCREW

5/16-18 X 2 3/4 C

2шт.

19

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

4шт.

20

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

2шт.

21

111767C2

BALL BEARING,1.468" ID x 4.25" OD x 0.875"

IDLER - rubber tire

3шт.
