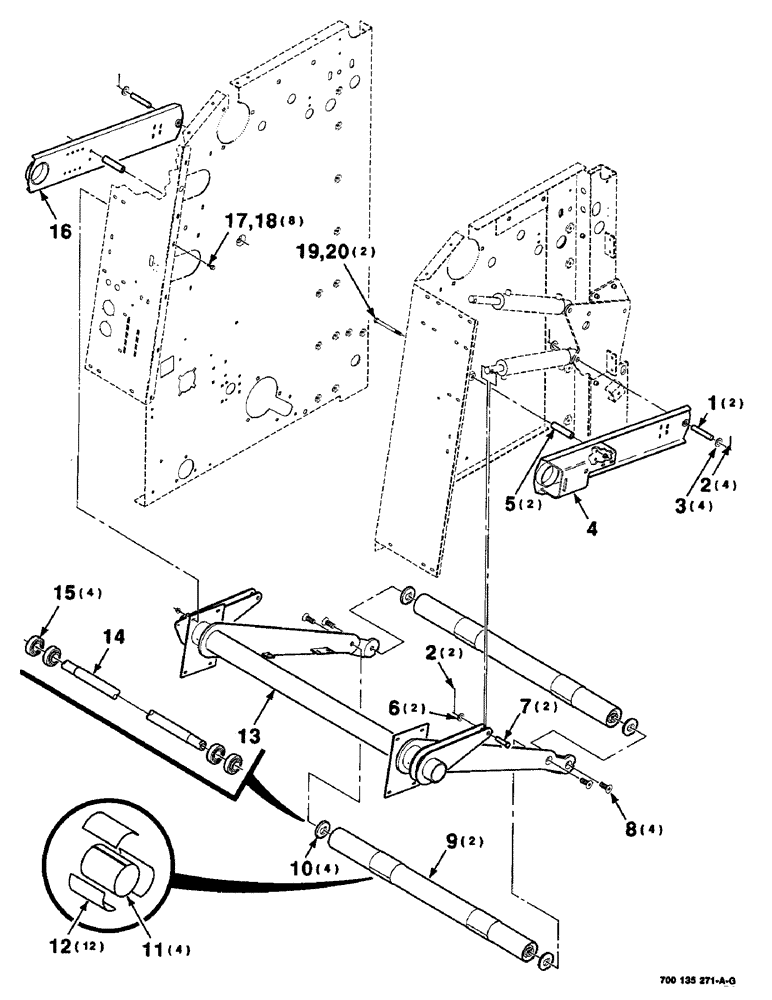

Запчасти Case IH 8435 (6-12) - BALE TENSIONING ASSEMBLY, LOWER, SERIAL NUMBER CFH0124401 AND LATER (12) - MAIN FRAME

1

700132379

PIN

2шт.

2

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

6шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

700147570

SUPPORT

WA - lower, left

1шт.

5

700132382

SPACER

2шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

7

700716026

PIN

5/8 X 2-1/4 CLEVIS PIN

2шт.

8

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS, special

4шт.

9

700132380

ROLLER

ASSEMBLY (includes items 11, 12, 14 and 15)

2шт.

10

700118652

WASHER

- special

4шт.

11

700715063

TAPE

- adhesive

4шт.

12

700132354

SLEEVE

12шт.

13

700132361

ARM

WA - lower

1шт.

14

700118709

SHAFT

1шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

16

700132377

SUPPORT

WA - lower

1шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

18

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

19

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

.5 X 5.5 UNC GR5 YZD

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.
