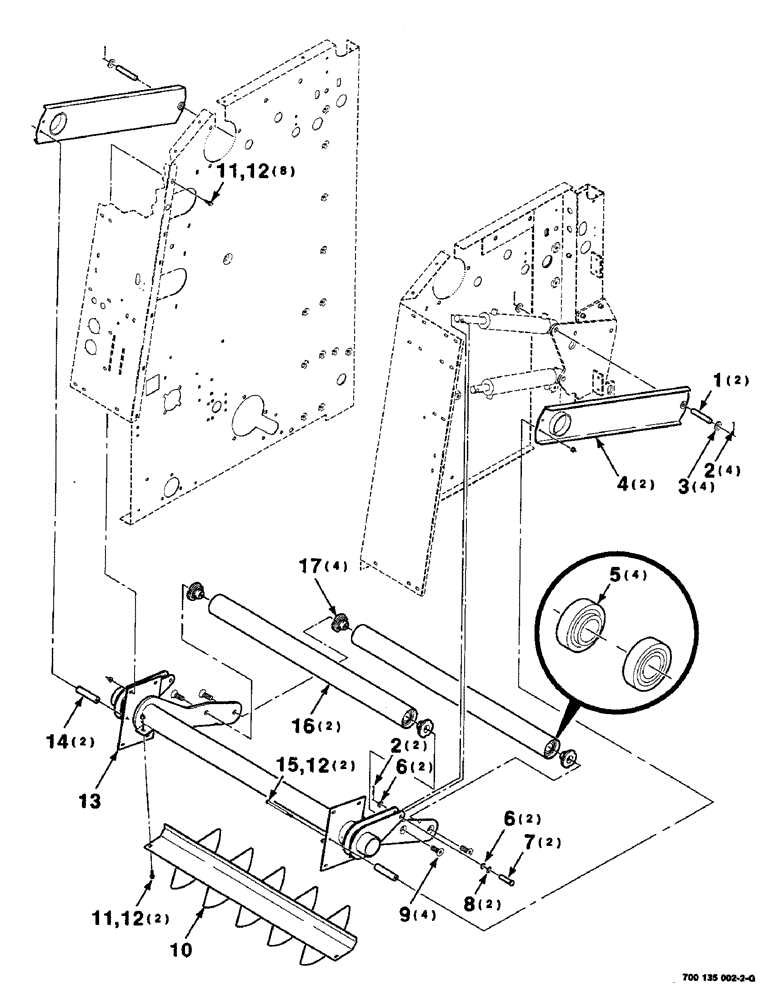

Запчасти Case IH 8435 (6-08) - BELT TENSIONING ASSEMBLY, UPPER (12) - MAIN FRAME

1

700132379

PIN

2шт.

2

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

6шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

700132374

SUPPORT

WA - upper

2шт.

5

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

6

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

4шт.

7

700716026

PIN

5/8 X 2-1/4 CLEVIS PIN

2шт.

8

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

9

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS, special

4шт.

10

700135122

GUIDE

WA - belt

1шт.

11

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

10шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

13

700135118

ARM

WA - upper

1шт.

14

700132383

SPACER

2шт.

15

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8-16 X 5-1/2 C

2шт.

16

700107934

ROLL

ER ASSEMBLY (includes item 5)

2шт.

17

700100927

HUB

4шт.
