(8-22) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700715833 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 20" STROKE

Запчасти Case IH 8435 (8-22) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700715833 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 20" STROKE (07) - HYDRAULICS

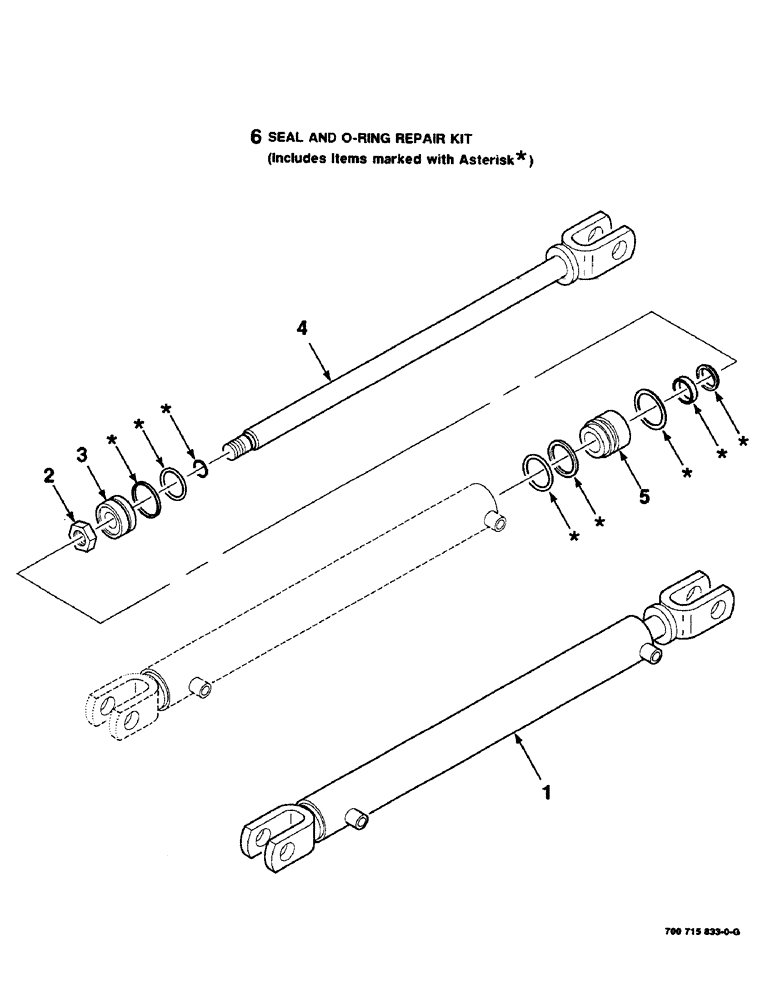

Схема запчастей Case IH 8435 - (8-22) - HYDRAULIC CYLINDER ASSEMBLY, TAILGATE, 700715833 HYD. CYL. ASSEMBLY COMPLETE, 2" BORE X 20" STROKE (07) - HYDRAULICS
1
5
4
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700715833

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE (2 inch bore x 20 inch stroke)

1шт.

2

700707418

JAM NUT

7/8-14 UNF HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709300

ROD

- piston

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711954

SEAL KIT

SEAL AND O-RING REPAIR KIT Includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
