(8-20) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700714887 HYDRAULIC SHUTOFF VALVE COMPLETE

Запчасти Case IH 8435 (8-20) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700714887 HYDRAULIC SHUTOFF VALVE COMPLETE (07) - HYDRAULICS

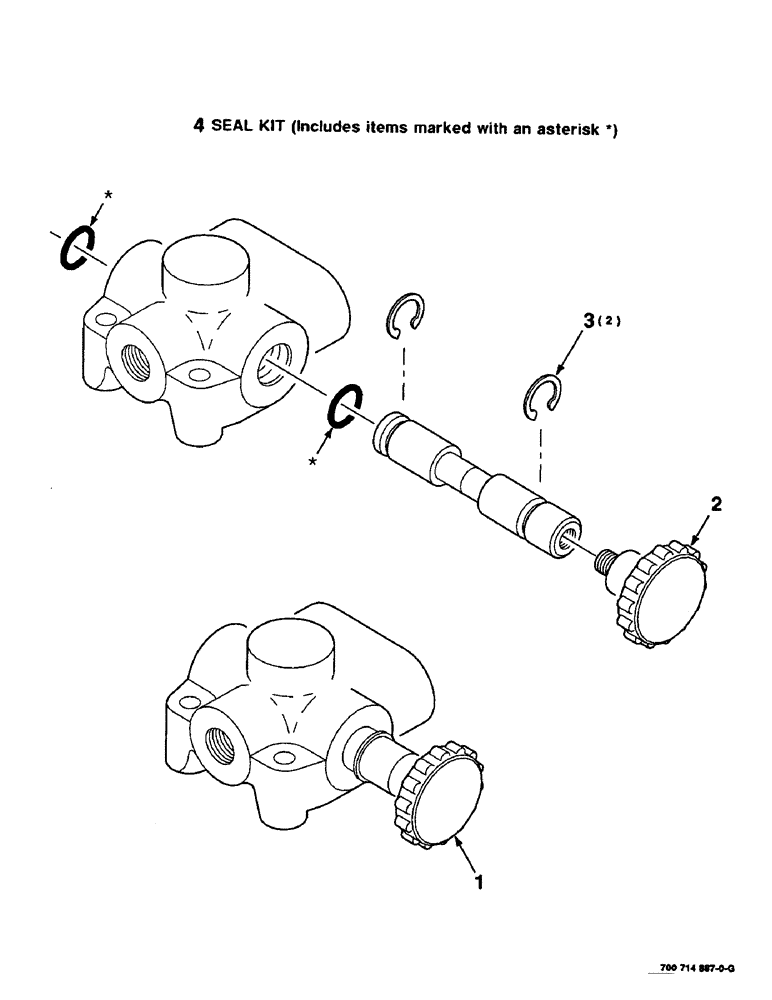

Схема запчастей Case IH 8435 - (8-20) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700714887 HYDRAULIC SHUTOFF VALVE COMPLETE (07) - HYDRAULICS
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714887

VALVE

- shutoff

1шт.

2

700712911

KNOB

1шт.

3

700704943

SEALING RING

RING - retainer

2шт.

4

700704366

SEAL KIT

SEAL KIT

1шт.
