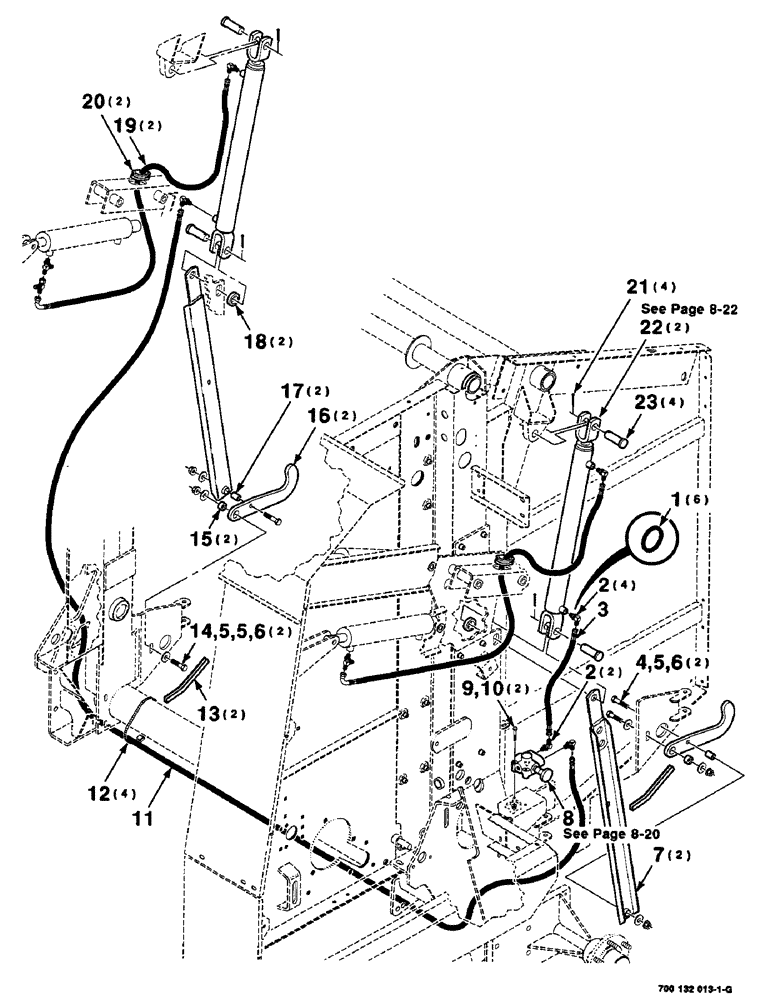

Запчасти Case IH 8435 (8-18) - HYDRAULIC ASSEMBLY, TAILGATE (07) - HYDRAULICS

1

738468

O-RING

6шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (includes item 1)

6шт.

3

700714818

HYDRAULIC HOSE,0.38" ID x 27.56", SAE J516, SAE J343

HOSE - hydraulic

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

6шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

7

700147502

LINK

STRAP WA

2шт.

8

700714887

VALVE

ASSEMBLY - shutoff

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

11

700714825

HYDRAULIC HOSE,0.38" ID x 131.89", SAE J516, SAE J343

HOSE - hydraulic

1шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, #80, 4.62/5.50 Type F Worm

4шт.

13

700716877

ORNAMENTAL STRIP

TRIM - edge

2шт.

14

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

15

700132512

BUSHING

2шт.

16

700132511

LATCH

2шт.

17

700132513

BUSHING

2шт.

18

700120629

SPACER

2шт.

19

700714821

HOSE

- hydraulic

2шт.

20

8027427

GROMMET

2шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

22

700715833

CYLINDER

ASSEMBLY - hydraulic

2шт.

23

700710292

PIN

CLEVIS, special

4шт.
