(8-14) - HYDRAULIC THREADER CONTROL VALVE ASSY., 700714789 HYDRAULIC THREADER CONTROL VALVE ASSY. COMPLETE

Запчасти Case IH 8435 (8-14) - HYDRAULIC THREADER CONTROL VALVE ASSY., 700714789 HYDRAULIC THREADER CONTROL VALVE ASSY. COMPLETE (07) - HYDRAULICS

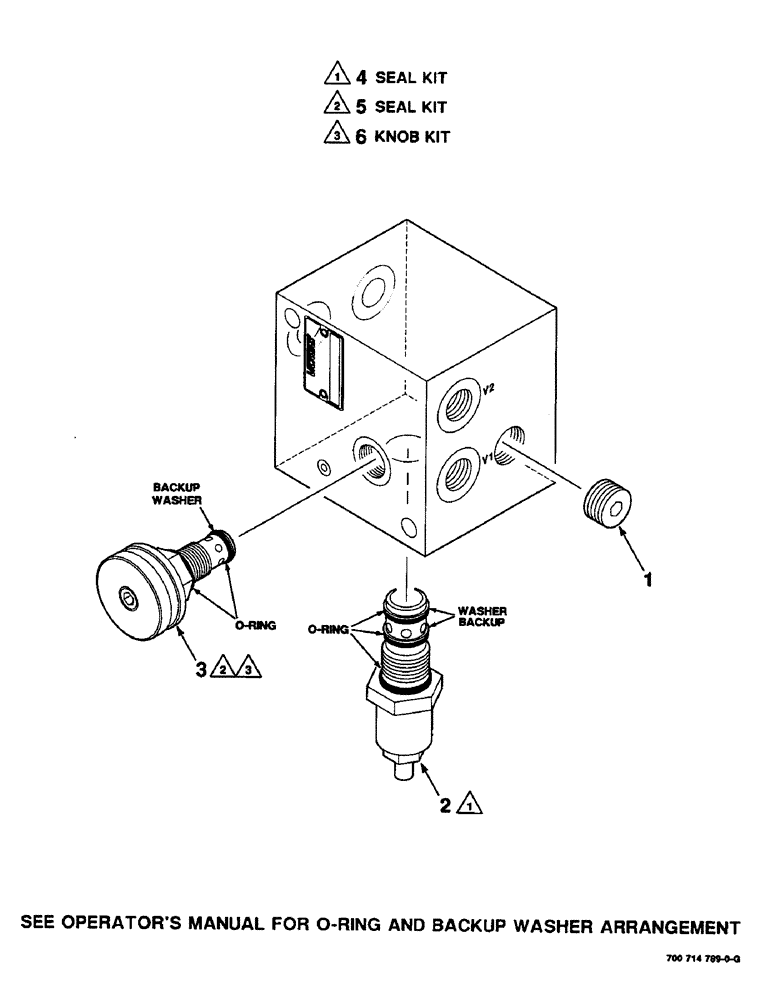

Схема запчастей Case IH 8435 - (8-14) - HYDRAULIC THREADER CONTROL VALVE ASSY., 700714789 HYDRAULIC THREADER CONTROL VALVE ASSY. COMPLETE (07) - HYDRAULICS
2
3
4
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700714789

VALVE

HYDRAULIC THREADER CONTROL VALVE ASSEMBLY COMPLETE

1шт.

1

700707840

PLUG

9/16-18 SAE PLUG

1шт.

2

700715654

VALVE

COUNTERBALANCE VALVE

1шт.

3

700715655

VALVE

- flow control

1шт.

4

700715665

KIT

- seal

1шт.

5

700715663

KIT

- seal

1шт.

6

700715660

KNOB

KIT - knob

1шт.
