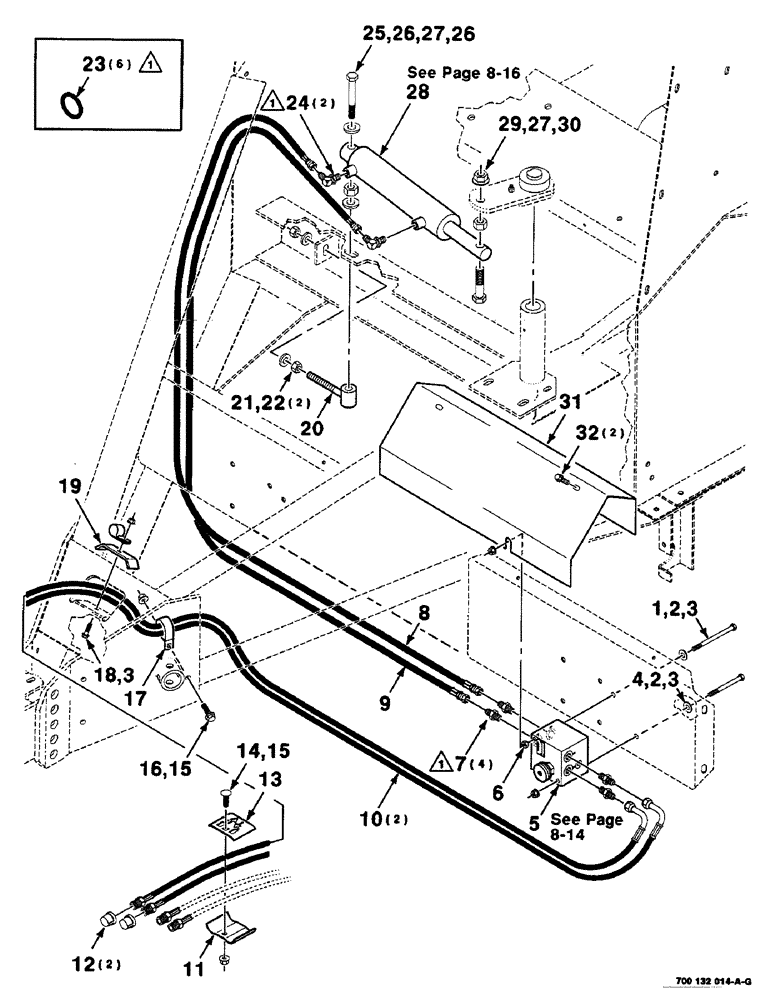

Запчасти Case IH 8435 (8-10) - THREADER HYDRAULIC ASSEMBLY, SERIAL NUMBER CFH0124001 THOUGH CFH0124137 (07) - HYDRAULICS

1

111-232

CARRIAGE BOLT,Short NK, 5/16"-18 x 4", G2

5/16-18 X 4 C

1шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 X 3-1/2 C

1шт.

5

700714789

VALVE

ASSEMBLY - flow control

1шт.

6

425-105

NUT,5/16"-18, G5

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short str thread (includes item 23)

4шт.

8

700714813

HYDRAULIC HOSE,0.25" ID x 52.17", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

9

700714814

HYDRAULIC HOSE,0.25" ID x 61.02", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

10

700714792

HOSE

- hydraulic

2шт.

11

700129086

CLAMP

1шт.

12

746677

CAP

- 1/2-14 NPT

2шт.

13

700129085

CLAMP

1шт.

14

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

16

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

17

755777

CLAMP

- line

1шт.

18

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

1шт.

19

700116123

CLAMP

- line

1шт.

20

700132386

SPECIAL BOLT

DRAWBOLT WA

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

23

738468

O-RING

6шт.

24

218-51-5

ELBOW - str thread 90 degrees (includes item 23)

2шт.

25

700711989

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

5/8-11 X 4-1/2 C, special

1шт.

26

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

27

425-1010

NUT,5/8"-11, G5

2шт.

28

700712122

CYLINDER

ASSEMBLY - hydraulic

1шт.

29

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

30

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

31

700132385

SHIELD

1шт.

32

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS TYPE D

2шт.
