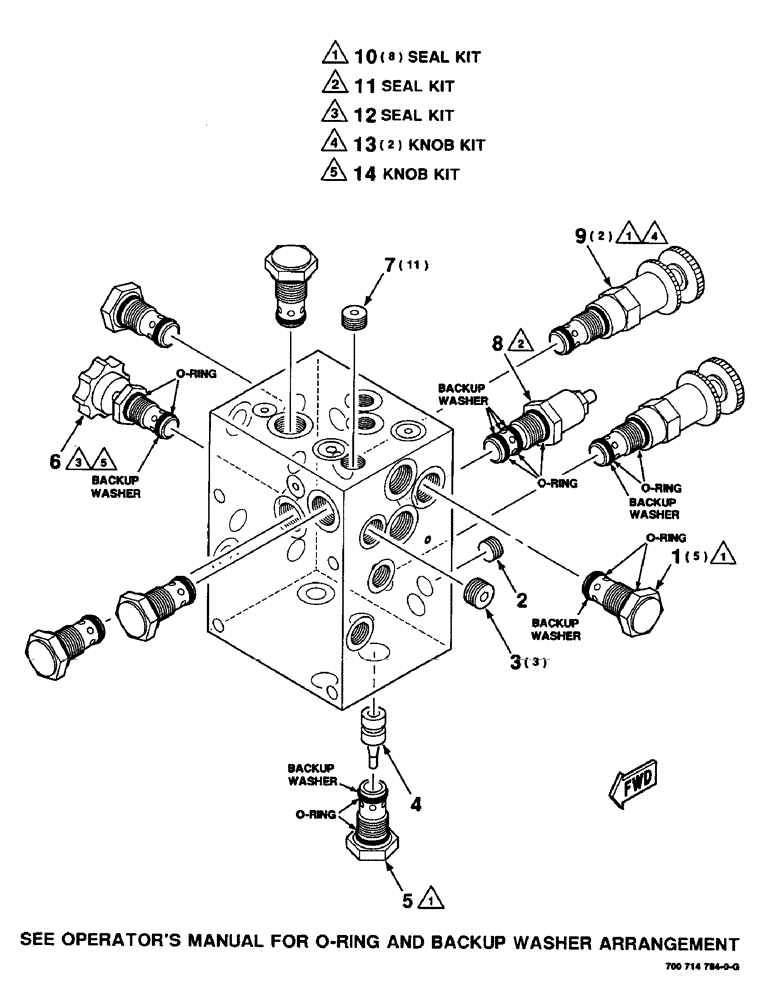

Запчасти Case IH 8435 (8-06) - HYDRAULIC VALVE ASSEMBLY, BALE TENSION, 700714784 HYDRAULIC VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

700714784

VALVE

HYDRAULIC VALVE ASM. COMPLETE

1шт.

1

700715651

VALVE

CHECK VALVE

5шт.

2

700707835

PLUG

7/16-20 SAE PLUG

1шт.

3

700707840

PLUG

9/16-18 SAE PLUG

3шт.

4

700715652

PISTON

PILOT PISTON

1шт.

5

700715659

VALVE

CHECK VALVE

1шт.

6

700715658

VALVE

NEEDLE VALVE

1шт.

7

700715661

PLUG

1/2-20 SAE PLUG

11шт.

8

700715654

VALVE

COUNTERBALANCE VALVE

1шт.

9

700715657

VALVE

RELIEF VALVE

2шт.

10

149942C1

SEAL KIT

KIT - seal

8шт.

11

700715665

KIT

- seal

1шт.

12

700715663

KIT

- seal

1шт.

13

700715666

KNOB

KIT - knob

2шт.

14

700715674

KNOB

KIT - knob

1шт.
