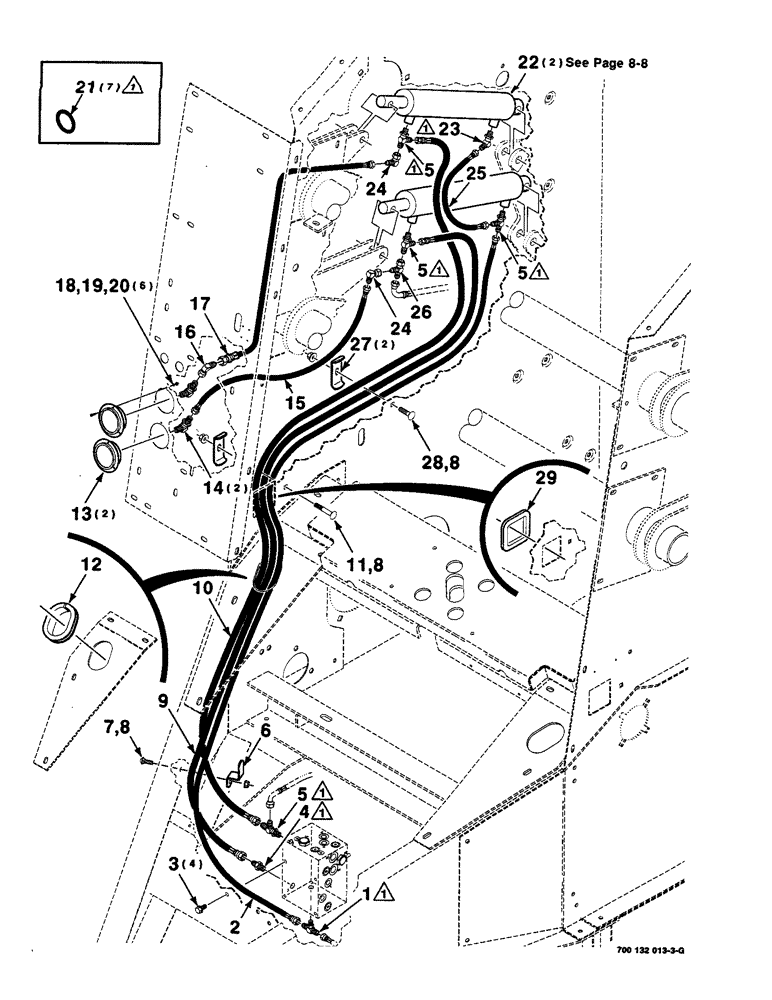

Запчасти Case IH 8435 (8-04) - HYDRAULIC ASSEMBLY, BALE TENSIONING, RIGHT (07) - HYDRAULICS

1

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- straight thread branch (includes item 21)

1шт.

2

700714793

HYDRAULIC HOSE,0.25" ID x 92.52", SAE J516, SAE J343

HOSE - hydraulic

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short str thread (includes item 21)

1шт.

5

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 21) 9/16"-18, 37º x 9/16"-18, O-Ring Run

4шт.

6

700132507

CLAMP

- hose

1шт.

7

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

9

700714819

HYDRAULIC HOSE,0.38" ID x 100.39", SAE J516, SAE J343

HOSE - hydraulic

1шт.

10

700714817

HYDRAULIC HOSE,0.25" ID x 106.30", SAE J516, SAE J343

HOSE - hydraulic

1шт.

11

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 RHSNB

1шт.

12

700715846

ORNAMENTAL STRIP

TRIM

1шт.

13

700711782

GAUGE

- pressure

2шт.

14

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

CONNECTOR - 90 degrees

2шт.

15

700715142

HYDRAULIC HOSE,0.25" ID x 35.43", SAE J516, SAE J343

HOSE - hydraulic

1шт.

16

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

45 DEGREE ELBOW

1шт.

17

700716074

HYDRAULIC HOSE,0.25" ID x 43.31", SAE 100R17, SAE J516, SAE J343

HOSE - hydraulic

1шт.

18

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

#6-32 X 1/2 CRPHMS GR60M

6шт.

19

492-11006

LOCK WASHER,#6

Washer, Lock, #6

6шт.

20

225-14106

NUT,#6-32

6шт.

21

738468

O-RING

7шт.

22

700714707

CYLINDER

ASSEMBLY - hydraulic

2шт.

23

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (includes item 21)

1шт.

24

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

25

700714820

HYDRAULIC HOSE,0.25" ID x 18.11", SAE J516, SAE J343

HOSE - hydraulic

1шт.

26

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

27

700120636

CLAMP

- hose

2шт.

28

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

29

700715845

ORNAMENTAL STRIP

TRIM

1шт.
