(8-02) - HYDRAULIC ASSEMBLY, BALE TENSIONING, LEFT

Запчасти Case IH 8435 (8-02) - HYDRAULIC ASSEMBLY, BALE TENSIONING, LEFT (07) - HYDRAULICS

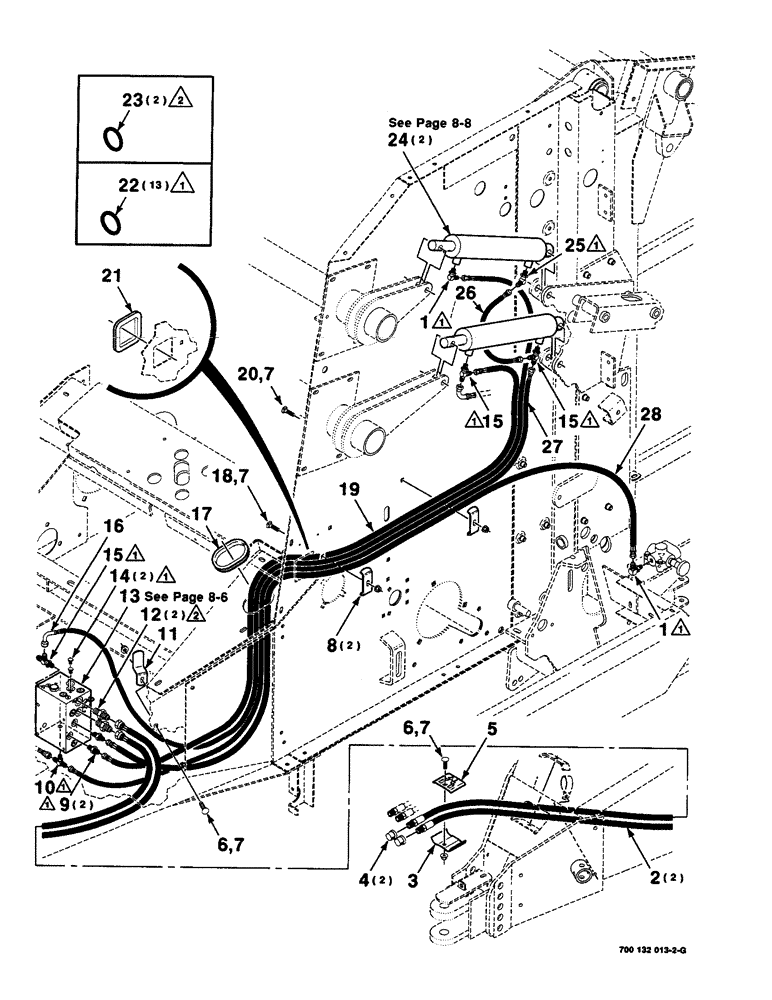

Схема запчастей Case IH 8435 - (8-02) - HYDRAULIC ASSEMBLY, BALE TENSIONING, LEFT (07) - HYDRAULICS
11
24
1
6
13
28
20
7
4
1
15
5
18
7
14
3
6
10
19
15
25
8
26
7
16
21
9
22
7
2
23
17
12
15
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (includes item 22)

2шт.

2

700714794

HYDRAULIC HOSE,0.38" ID x 88.58"

HOSE - hydraulic

2шт.

3

700129086

CLAMP

1шт.

4

746677

CAP

1/2-14 NPT CAP

2шт.

5

700129085

CLAMP

1шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

8

700120636

CLAMP

- hose

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short str thread (includes item 22)

2шт.

10

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- straight thread branch (includes item 22)

1шт.

11

700132507

CLAMP

- hose

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Short str thread (Incl. item 23) 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

13

700714784

VALVE

ASSEMBLY - bale tension

1шт.

14

7746456

PLUG

- o-ring boss (includes item 22) (used only w/o ejector & monitor)

2шт.

15

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 22) 9/16"-18, 37º x 9/16"-18, O-Ring Run

3шт.

16

700714823

HOSE

- hydraulic

1шт.

17

700715846

ORNAMENTAL STRIP

TRIM

1шт.

18

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

1шт.

19

700714819

HYDRAULIC HOSE,0.38" ID x 100.39", SAE J516, SAE J343

HOSE - hydraulic

1шт.

20

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

21

700715845

ORNAMENTAL STRIP

TRIM

1шт.

22

738468

O-RING

13шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

24

700714707

CYLINDER

ASSEMBLY - hydraulic

2шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degrees (includes item 22)

1шт.

26

700714820

HYDRAULIC HOSE,0.25" ID x 18.11", SAE J516, SAE J343

HOSE - hydraulic

1шт.

27

700714793

HYDRAULIC HOSE,0.25" ID x 92.52", SAE J516, SAE J343

HOSE - hydraulic

1шт.

28

700714822

HYDRAULIC HOSE,0.38" ID x 110.24", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.
