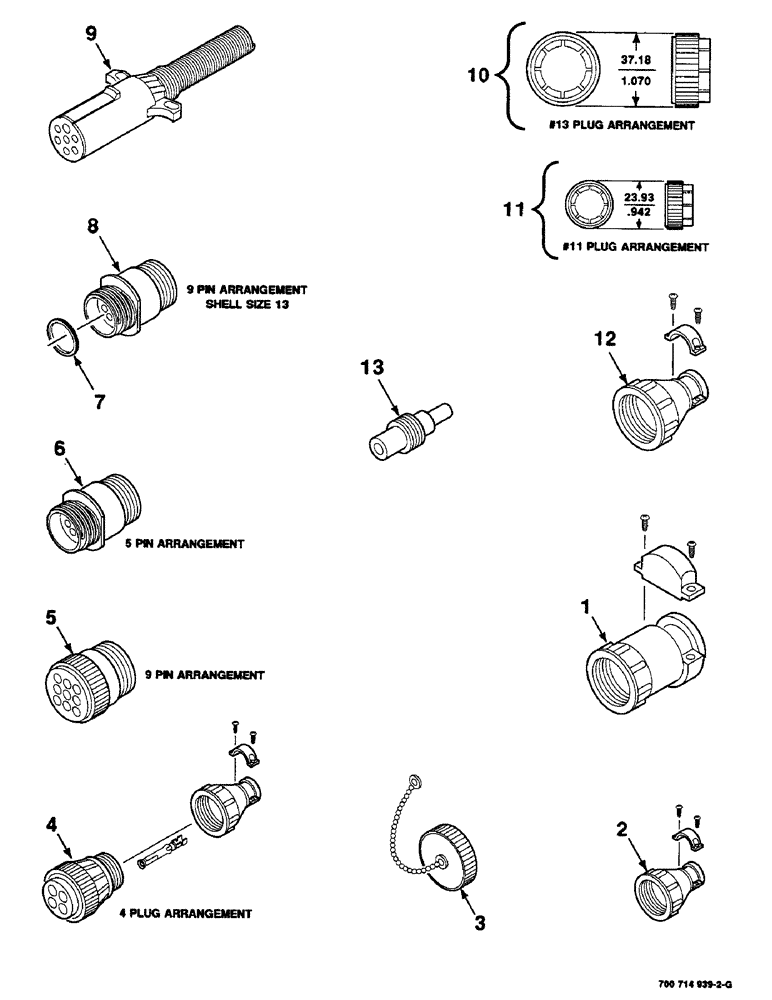

Запчасти Case IH 8435 (4-22) - ELECTRICAL HARNESS SERVICE PARTS (CONTINUED) (06) - ELECTRICAL

1

700715828

CLAMP

- cable (shell size 13)

1шт.

2

700709233

CLAMP

(shell size 11)

1шт.

3

700707016

CAP

- sealing

1шт.

4

700709232

POWER SOCKET

RECEPTACLE - standard sex (4 pin)

1шт.

5

700709704

WIRE CONNECTOR

PLUG - receptacle (9 pin arrangement)

1шт.

6

700708079

WIRE CONNECTOR

RECEPTACLE - standard sex (13-9 pin arrangement)

1шт.

7

700712896

SEAL

(shell size 13)

1шт.

8

700715850

CONNECTION,ELECTRIC

RECEPTACLE - standard sex (shell size 13)

1шт.

9

700715341

PLUG

- 7 pin domestic

1шт.

10

60-6127T2

CONNECTION

RING - coupling (#13 plug arrangement)

1шт.

11

60-6126T2

CONNECTION

RING - coupling (#11 plug arrangement)

1шт.

12

225153C1

CONTACT HOUSING

CLAMP (shell size 17)

1шт.

13

700714829

PLUG

- cavity

1шт.
