(4-20) - ELECTRICAL HARNESS SERVICE PARTS

Запчасти Case IH 8435 (4-20) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

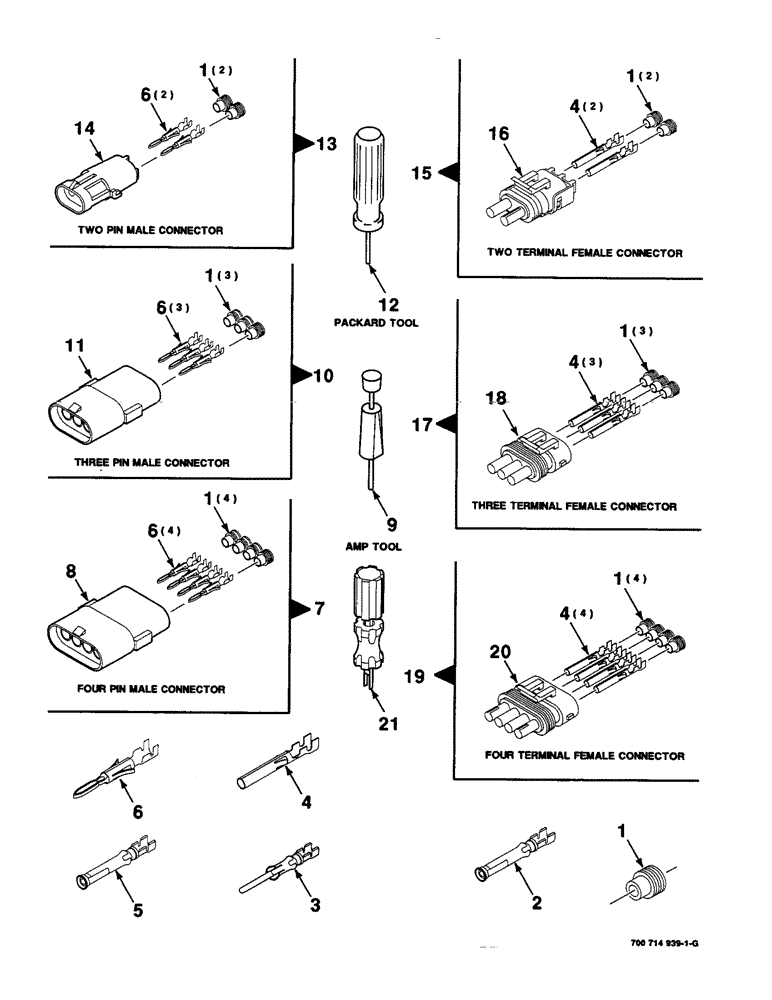

Схема запчастей Case IH 8435 - (4-20) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL
12
16
4
6
1
8
7
6
20
21
18
1
11
17
14
4
1
1
9
6
4
15
3
1
6
4
1
10
13
2
1
19
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700706400

PLUG

SEAL

1шт.

2

700713574

SOCKET

1шт.

3

700713559

PIN

- bronze, type 3

1шт.

4

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

- socket

1шт.

5

700708758

TERMINAL

SOCKET

1шт.

6

700706401

TERMINAL

PIN - terminal, male

1шт.

7

700709354

REPAIR KIT

KIT - repair (includes items 1, 6 and 8)

1шт.

8

700708964

WIRE CONNECTOR

CONNECTOR - shroud, male

1шт.

9

131503C1

TOOL

- connector repair (amp)

1шт.

10

700718599

KIT

- harness repair, 3 pin, male (includes items 1, 6 and 11)

1шт.

11

700706413

ELEC CONNECTOR

CONNECTOR - shroud, male

1шт.

12

700707012

TERMINAL CONNECTOR

TOOL - connector repair (Packard)

1шт.

13

700708753

REPAIR KIT

KIT - harness repair, 2 pin, female (includes items 1, 6 and 14)

1шт.

14

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud, male

1шт.

15

700706999

REPAIR KIT

KIT - harness repair, 2 socket, female (includes items 1, 4 and 16)

1шт.

16

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - female

1шт.

17

700707001

REPAIR KIT

KIT - harness repair, 3 socket, female (includes items 1, 4 and 18)

1шт.

18

245484C1

ELEC CONNECTOR,3 Pin

CONNECTOR - female

1шт.

19

700707002

REPAIR KIT

KIT - harness repair, 4 socket, female (includes items 1, 4 and 20)

1шт.

20

700708963

WIRE CONNECTOR

CONNECTOR - tower, female

1шт.

21

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.
