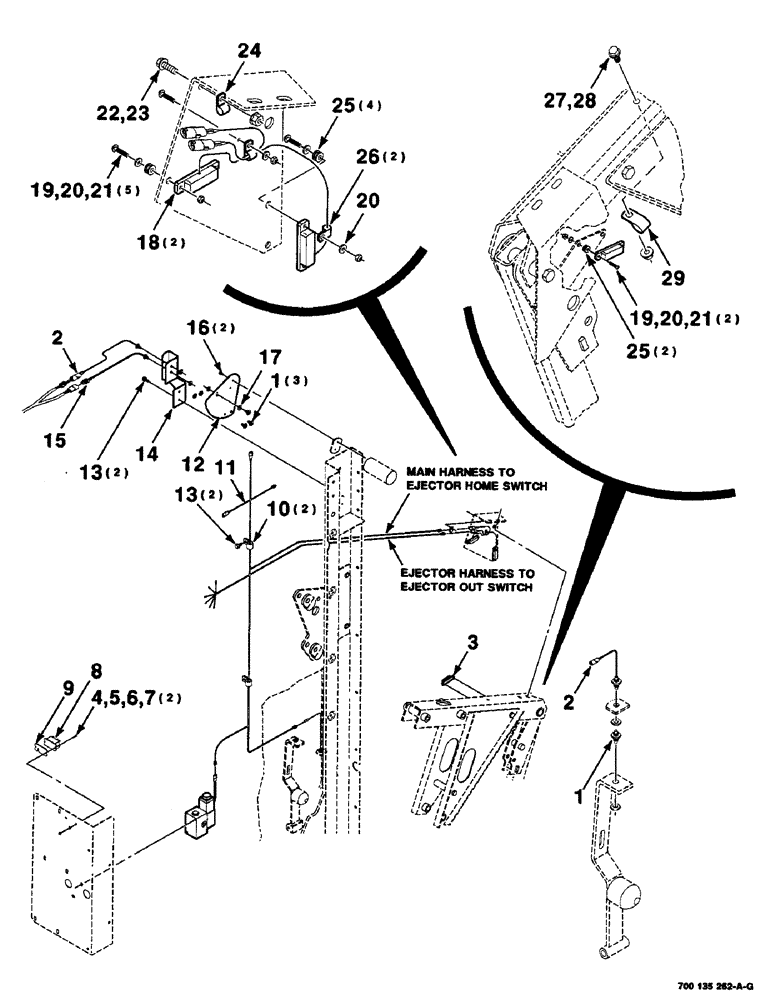

Запчасти Case IH 8435 (4-16) - EJECTOR ELECTRICAL ASSEMBLY, SERIAL NUMBER CFH0124401 AND LATER (06) - ELECTRICAL

1

700707354

CONNECTION,ELECTRIC

ACTUATOR

4шт.

2

700119161

SWITCH

SENSOR "A"

2шт.

3

700709996

SWITCH

ACTUATOR - switch

1шт.

4

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

GR60M Cross Pan Hd, #8-32 x 1/2"

2шт.

5

495-21019

WASHER,#8

2шт.

6

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

7

225-14108

NUT,#8-32

H GR2 #8-32

2шт.

8

700716828

RELAY

- electrical

1шт.

9

700718448

GASKET

- relay

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Hose 1/2", Insul, 1/2" Bolt

2шт.

11

700716508

HARNESS

- wire

1шт.

12

700135956

PLATE

DISC - switching

1шт.

13

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

14

700135955

PLATE

SUPPORT - switch

1шт.

15

700716875

SWITCH

1шт.

16

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

17

700710190

WASHER

- stainless steel

1шт.

18

700710208

ROTARY SWITCH

SWITCH - assembly

2шт.

19

700710188

SCREW

#6-32 X 3/4 CRPHMS STNLS

7шт.

20

700710187

WASHER

#6 WPW STNLS

8шт.

21

700710189

LOCK NUT

#6-32 LHSN STNLS

7шт.

22

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

23

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

25

700710199

GROMMET

6шт.

26

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line 5/16", Insul, 1/4" Bolt

2шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

1шт.
