Запчасти Case IH 8435 (4-14) - EJECTOR ELECTRICAL ASSEMBLY, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (06) - ELECTRICAL

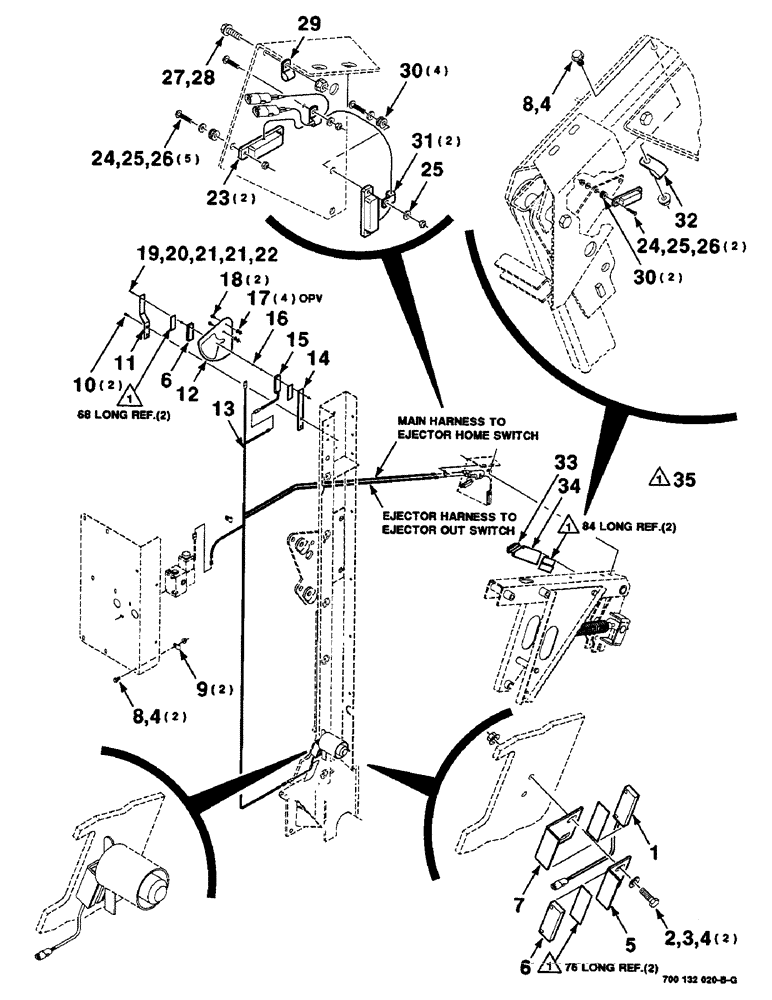

Схема запчастей Case IH 8435 - (4-14) - EJECTOR ELECTRICAL ASSEMBLY, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (06) - ELECTRICAL
17
30
30
13
22
4
33
26
20
25
35
21
4
2
3
32
29
16
34
31
12
24
23
19
6
24
7
15
28
5
26
9
8
11
18
21
25
27
4
25
14
6
1
10
8

Артикул

Название

Примечание

Количество

1

700714786

SWITCH

- N.O.

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

5шт.

5

700132138

SUPPORT

- actuator

1шт.

6

700714795

ACTUATOR

2шт.

7

700132137

SUPPORT

- switch

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

9

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

3/8", Insul, 3/8" Bol, Hose

2шт.

10

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

1/4-20 X 3/4 HWHTCTS

2шт.

11

700132136

SUPPORT

- switch

1шт.

12

700132135

DISC

- switching

1шт.

13

700714938

HARNESS

- wire

1шт.

14

700132163

SUPPORT

- actuator

1шт.

15

700714787

SWITCH

- SPDT

1шт.

16

700715032

SPACER

- 1/4 OD x 1/4 L

1шт.

17

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

18

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

19

700713208

SCREW

#6-32 X 2 CRPHMS GR60M

1шт.

20

492-11006

LOCK WASHER,#6

Washer, Lock, #6

1шт.

21

495-31016

WASHER,#6

2шт.

22

225-14106

NUT,#6-32

1шт.

23

700710208

ROTARY SWITCH

SWITCH - assembly

2шт.

24

700710188

SCREW

#6-32 X 3/4 CRPHMS STNLS

7шт.

25

700710187

WASHER

#6 WPW STNLS

8шт.

26

700710189

LOCK NUT

#6-32 LHSN STNLS

7шт.

27

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

28

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

29

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Hose 5/16", Insul, 1/4" Bolt

1шт.

30

700710199

GROMMET

6шт.

31

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line 5/16", Insul, 1/4" Bolt

2шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

1шт.

33

700709996

SWITCH

ACTUATOR - switch

1шт.

34

700132133

PLATE

- switch

1шт.

35

700714617

TAPE

- double sided

1шт.

Выбрано товаров: 35
