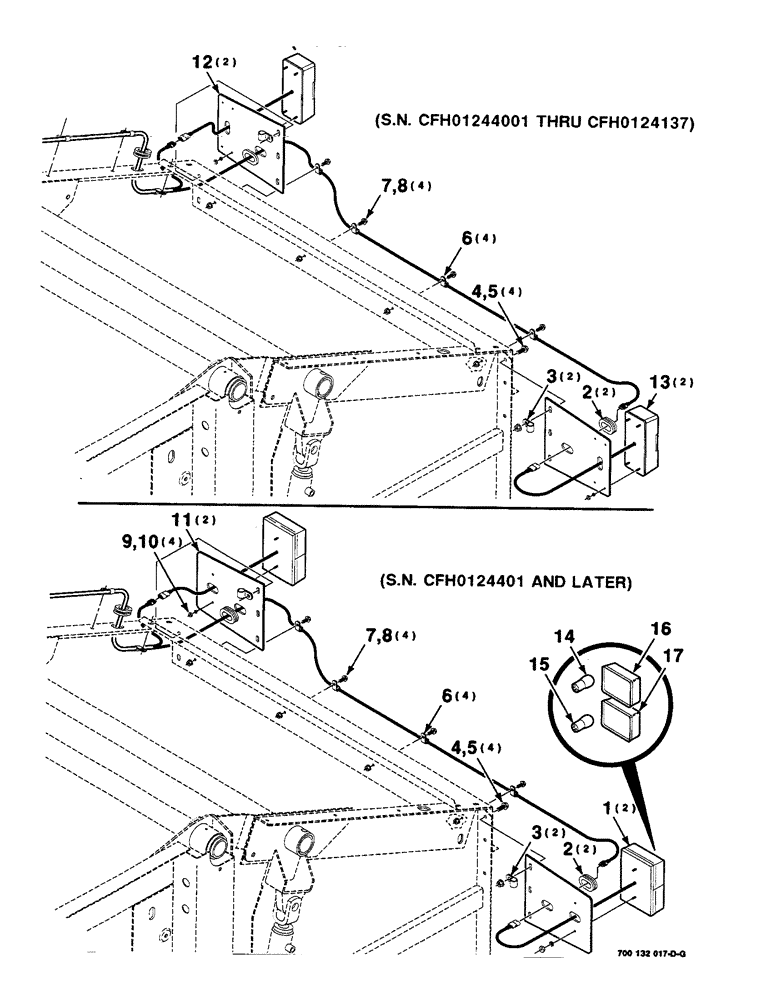

Запчасти Case IH 8435 (4-04) - ELECTRICAL ASSEMBLY (CONTINUED) (06) - ELECTRICAL

1

700716461

TAIL LAMP

LIGHT - combination (includes items 14, 15, 16 & 17)

2шт.

2

700707095

GROMMET

4шт.

3

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

4шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

8шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

8шт.

9

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

825-1405

NUT,M5, Cl 8

4шт.

11

700135935

SUPPORT

BRACKET - light

2шт.

12

700132490

BRACKET

- light

2шт.

13

700714721

LAMP

LIGHT - combination (includes hardware)

2шт.

14

700717381

BULB

1шт.

15

700717385

BULB

1шт.

16

700717417

LENS

- amber

1шт.

17

700717386

LENS

- red

1шт.
