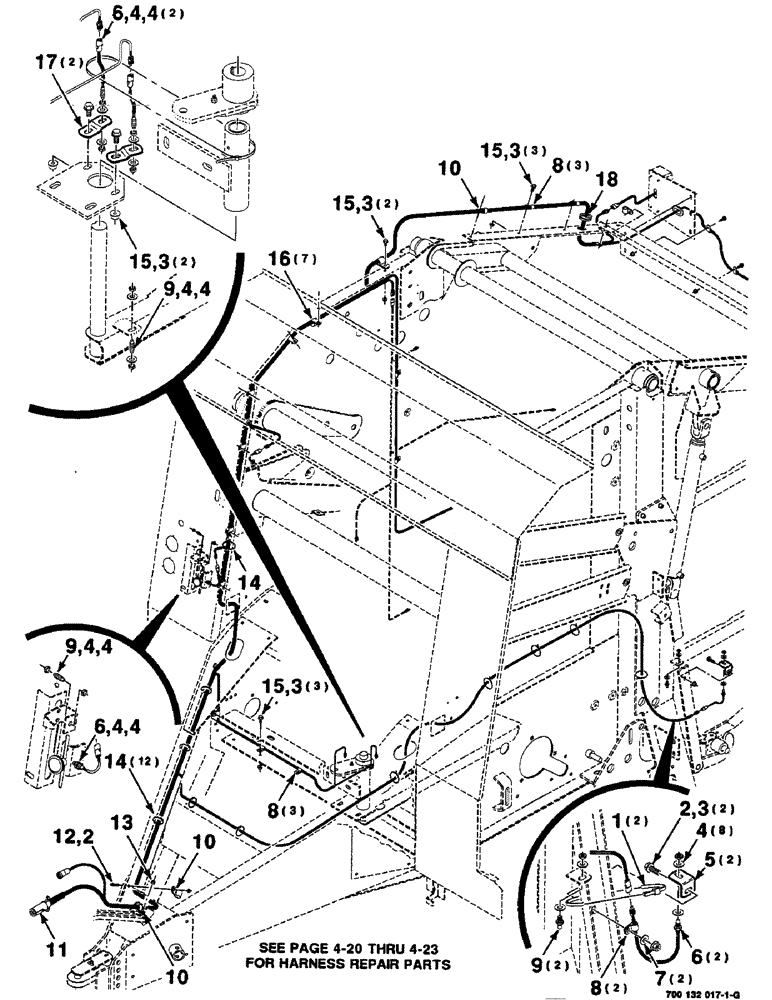

Запчасти Case IH 8435 (4-02) - ELECTRICAL ASSEMBLY (06) - ELECTRICAL

1

306132C1

CABLE TIE,14.5" L

TIE - cable 14 in

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

4

700710190

WASHER

- stainless steel

18шт.

5

700132393

ANGLE

2шт.

6

700119161

SWITCH

SENSOR "A"

5шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

8

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

8шт.

9

700710211

ACTUATOR

4шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

11

700714939

HARNESS

- baler

1шт.

12

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

13шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

10шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

7шт.

17

700132461

BRACKET

2шт.

18

700707095

GROMMET

1шт.
