(3-10) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES

Запчасти Case IH 8435 (3-10) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Pickup

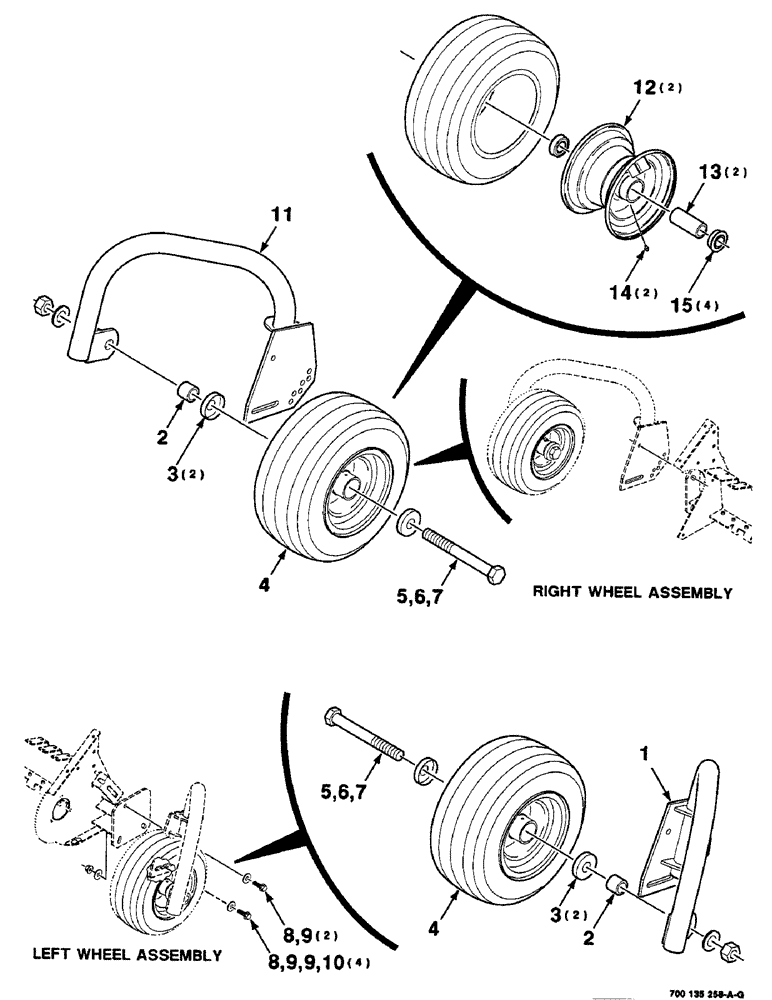

Схема запчастей Case IH 8435 - (3-10) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Pickup
5
12
15
9
13
11
3
2
9
1
6
8
4
7
7
5
9
8
4
3
2
14
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700147500

STRUT

WA - left

1шт.

2

6651772

SPACER

2шт.

3

700127756

RING

- grass

4шт.

4

700716366

WHEEL

- assembly (includes items 12, 13, 14 and 15)

2шт.

5

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

1-8 X 8 C

2шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7

429-1016

NUT,1"-8, G8

2шт.

8

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

6шт.

9

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

10шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

11

700147501

STRUT

WA - right

1шт.

12

700716367

WHEEL

2шт.

13

700714562

SPACER

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Extended 1/4"-28 NPT x .54" lg

2шт.

15

700714371

FLANGED BEARING

BEARING - flange

4шт.
