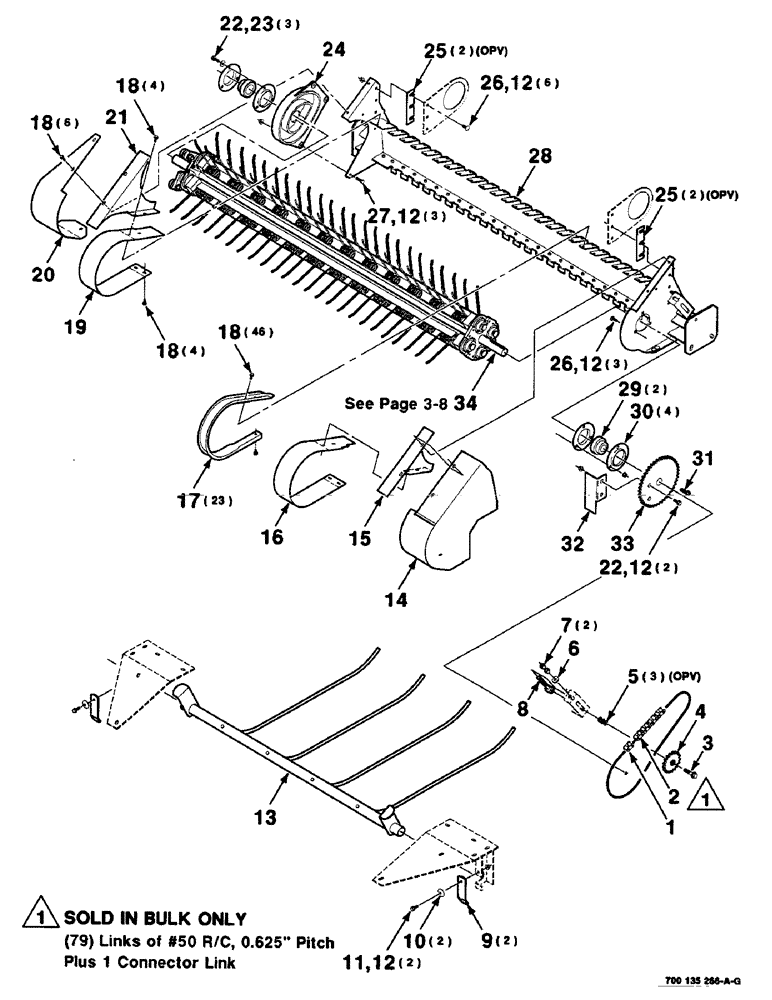

Запчасти Case IH 8435 (3-04) - PICKUP AND SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0124401 AND LATER Pickup
№
Артикул
Название
Примечание
Количество
1
241-1315
LINK, CONNECTING
LINK - connector, #50
1шт.
2
1791D
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
CHAIN - roller, #50 (10 foot bulk)
1шт.
3
121-433
FLANGE BOLT,Hex, 1/2" - 13 x 2", Gr 8
1/2-13 X 2 HFS GR8
1шт.
4
700716888
SPROCKET ASSY.
IDLER - sprocket, 17 tooth
1шт.
5
95-81100
WASHER,33/64" x 7/8" x .049"
1/2 X 18 GAUGE NRMB
3шт.
6
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
1/2 HARDENED PLAIN WASHER
1шт.
7
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
8
700147510
SPECIAL BOLT
DRAWBOLT WA
1шт.
9
700147566
RETAINER
2шт.
10
7845357
WASHER
- spring
2шт.
11
121-237
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
3/8-16 X 1-1/4 HFS GR8
2шт.
13
700132123
GUARD
WINDGUARD WA
1шт.
14
700147508
SHIELD
WA - left
1шт.
15
700147509
SHIELD
- left
1шт.
16
700132114
SUPPORT
WRAPPER - end, left
1шт.
17
700132112
WRAPPER
- tine
23шт.
18
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
60шт.
19
700132115
SUPPORT
WRAPPER - end, right
1шт.
20
700132122
SHIELD
- right
1шт.
21
700132117
SHIELD
- right
1шт.
22
121-226
SERRATED BOLT,Hex, 3/8" - 16 x 1"
5шт.
23
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
3шт.
24
700116125
HOUSING
CAMTRACK
1шт.
25
700132128
SHIM
4шт.
26
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
9шт.
27
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
28
700135815
FRAME
WA - pickup
1шт.
29
700708091
SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm
BEARING - spherical
2шт.
30
617863R1
FLANGED BEARING
4шт.
31
Q3929
KEY,Gib, 5/16" Sq x 1 1/2"
5/16 X 1-1/2 GIB KEY
1шт.
32
700132131
SLINGER
- inner
1шт.
33
700147513
SPROCKET ASSY.
SPROCKET WA - 50B43 tooth
1шт.
34
700147558
ROTOR ASSY.
ROTOR ASSEMBLY
1шт.
Выбрано товаров: 34
