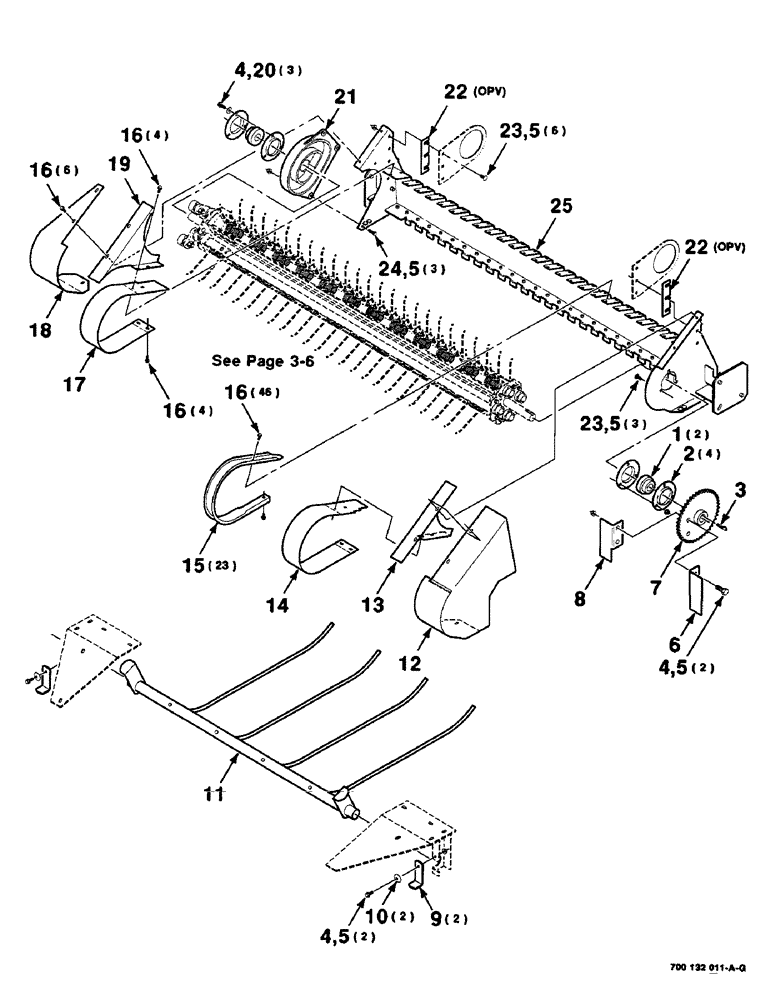

Запчасти Case IH 8435 (3-02) - PICKUP AND SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 Pickup

1

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

2

617863R1

FLANGED BEARING

4шт.

3

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 GIB KEY

1шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

7шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

16шт.

6

700132130

SLINGER

- outer

1шт.

7

700132129

SPROCKET ASSY.

SPROCKET WA - 50B43 tooth

1шт.

8

700132131

SLINGER

- inner

1шт.

9

700132132

RETAINER

2шт.

10

7845357

WASHER

- spring

2шт.

11

700132123

GUARD

WINDGUARD WA

1шт.

12

700147508

SHIELD

WA - left

1шт.

13

700147509

SHIELD

- left

1шт.

14

700132114

SUPPORT

WRAPPER - end, left

1шт.

15

700132112

WRAPPER

- tine

23шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

60шт.

17

700132115

SUPPORT

WRAPPER - end, right

1шт.

18

700132122

SHIELD

- right

1шт.

19

700132117

SHIELD

- right

1шт.

20

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

3шт.

21

700116125

HOUSING

CAMTRACK

1шт.

22

700132128

SHIM

2шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

9шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

25

700132089

FRAME

WA - pickup

1шт.
