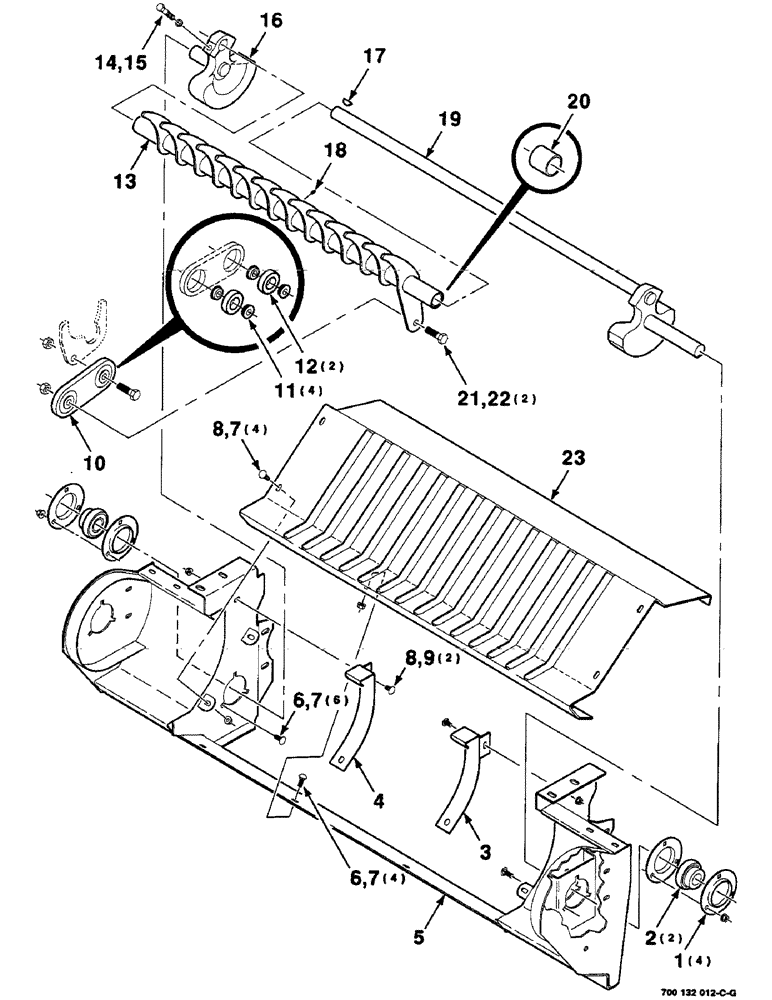

Запчасти Case IH 8435 (2-32) - STUFFER, FRAME AND SUPPORT ASSEMBLIES Driveline

1

617863R1

FLANGED BEARING

- bearing

4шт.

2

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

3

700135170

PAN

WA - left

1шт.

4

700135171

PAN

WA - right

1шт.

5

700132178

FRAME

WA (S.N. CFH0124001 thru CFH0124137)

1шт.

700135999

FRAME

WA (S.N. CFH0124401 and later)

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

10шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

8

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

700132212

LINK

ASSEMBLY (includes items 11 and 12)

1шт.

11

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

- bearing

4шт.

12

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - cylindrical

2шт.

13

700132200

SHAFT ASSY.

STUFFER WA (includes item 20)

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

700132088

CRANK

WA - idler

1шт.

17

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

19

700132087

CRANK

WA - drive, left

1шт.

20

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

BEARING - bronze

1шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 1-3/4 C

2шт.

22

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

2шт.

23

700132196

GRATE

1шт.
