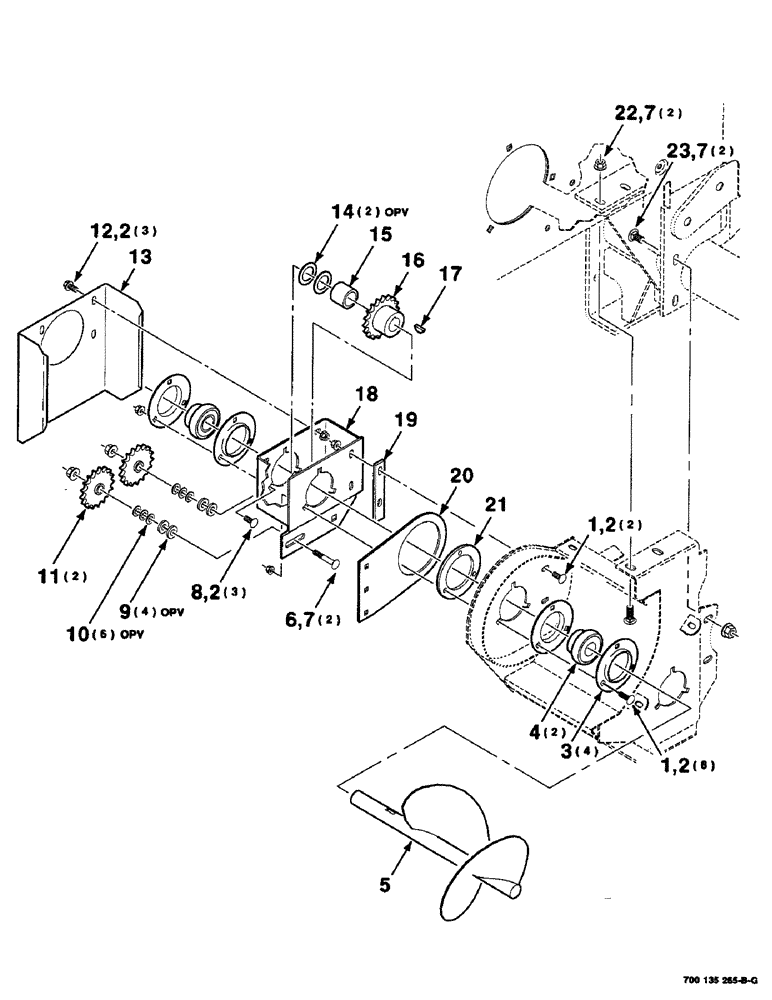

Запчасти Case IH 8435 (2-30) - STUFFER AUGER AND DRIVE ASSEMBLY, RIGHT, SERIAL NUMBER CFH0124401 AND LATER Driveline

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

5шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

11шт.

3

617863R1

FLANGED BEARING

- bearing

4шт.

4

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

2шт.

5

700147548

AUGER

WA - right

1шт.

6

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

10

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

6шт.

11

700716888

SPROCKET ASSY.

SPROCKET - idler, 17 tooth

2шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

13

700132226

SHIELD

- right

1шт.

14

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

15

700132223

SPACER

1шт.

16

700716889

SPROCKET ASSY.

SPROCKET WA - 50B18 tooth

1шт.

17

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

18

700147523

SUPPORT

WA - right

1шт.

19

700132220

SPACER

1шт.

20

700132214

PLATE

1шт.

21

700132215

SPACER

- pivot

1шт.

22

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

23

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.
