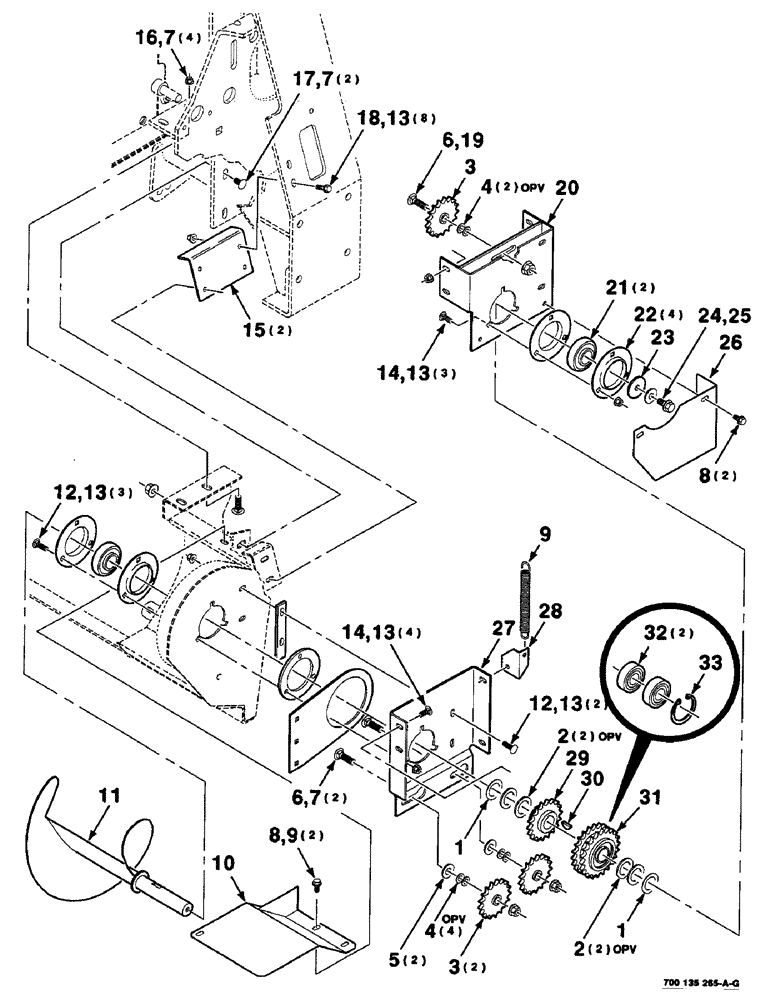

Запчасти Case IH 8435 (2-26) - STUFFER AUGER AND DRIVE ASSEMBLY, LEFT, SERIAL NUMBER CFH0124401 AND LATER Driveline
№
Артикул
Название
Примечание
Количество
1
495-81205
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
1-1/4 X 18 GAUGE NRMB
2шт.
2
52324
BUSHING
1-1/4 X 10 GAUGE NRMB
4шт.
3
700716888
SPROCKET ASSY.
SPROCKET - idler, 17 tooth
3шт.
4
95-81100
WASHER,33/64" x 7/8" x .049"
1/2 X 18 GAUGE NRMB
6шт.
5
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN
2шт.
6
433-828
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
1/2-13 X 1-3/4 RHSNB
3шт.
7
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
8шт.
8
409-7612
BOLT,3/8"-16 x 1.09" OAL
3/8-16 X 3/4 HWHMS
4шт.
9
858167
SPRING
- extension
3шт.
10
700151468
SHIELD
- auger
1шт.
11
700147534
AUGER
WA - left
1шт.
12
433-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5
5шт.
14
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
7шт.
15
700135161
ANGLE
2шт.
16
433-824
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
1/2-13 X 1-1/2 RHSNB
4шт.
17
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 RHSNB
2шт.
18
121-226
SERRATED BOLT,Hex, 3/8" - 16 x 1"
8шт.
19
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
20
700147515
SUPPORT
WA
1шт.
21
565672R92
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
BEARING - spherical
2шт.
22
617863R1
FLANGED BEARING
4шт.
23
700135910
WASHER
- special
1шт.
24
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
1шт.
25
700711557
WASHER
1/2 HARDENED WIDE PLAIN WASHER
1шт.
26
700147521
SHIELD
1шт.
27
700147514
SUPPORT
1шт.
28
700147519
ANGLE
1шт.
29
700147527
SPROCKET ASSY.
SPROCKET WA - 50C18 tooth
1шт.
30
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
31
700147530
SPROCKET ASSY.
SPROCKET ASSEMBLY, 50-22 tooth (includes items 32 and 33)
1шт.
32
586649R92
BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W
- cylindrical
2шт.
Выбрано товаров: 33
