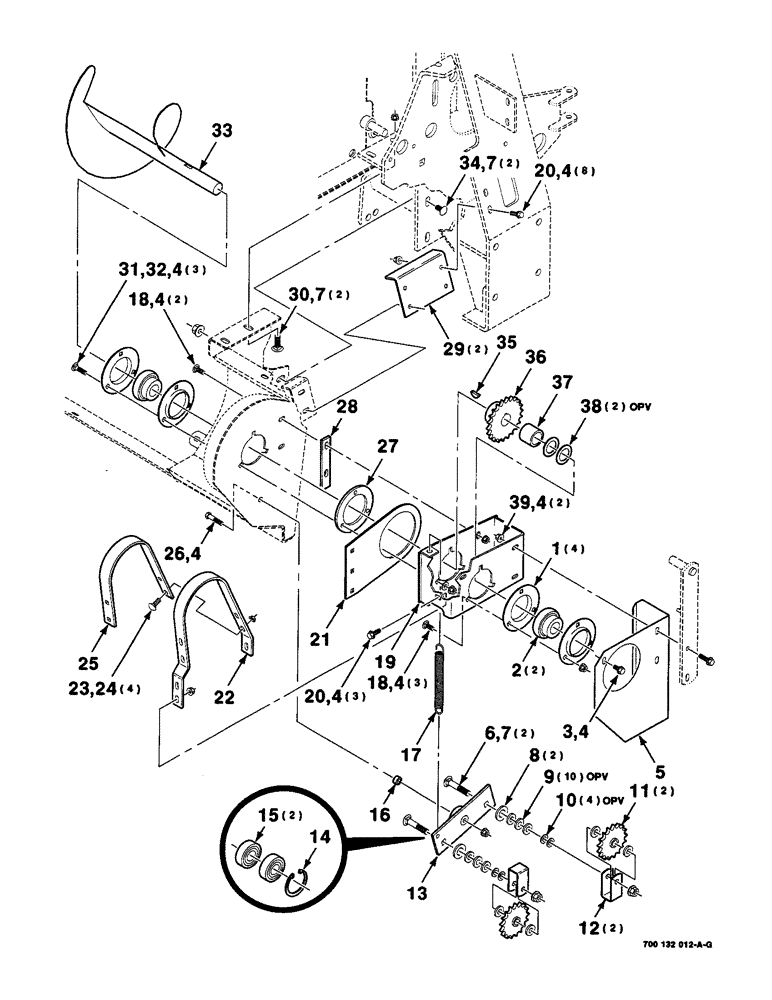

Запчасти Case IH 8435 (2-24) - STUFFER AUGER AND DRIVE ASSEMBLY, LEFT, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 Driveline

1

617863R1

FLANGED BEARING

4шт.

2

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

2шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

23шт.

5

700132224

SHIELD

- left

1шт.

6

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

10шт.

10

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

4шт.

11

565442R91

SPROCKET

- idler, 17 tooth

2шт.

12

700134913

CLIP

- retainer

2шт.

13

700135149

SUPPORT

ASSEMBLY (includes items 14 and 15)

1шт.

14

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

15

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

BEARING - cylindrical

2шт.

16

6893416

SPACER

1шт.

17

858167

SPRING

1шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

5шт.

19

700132204

SUPPORT

WA - left

1шт.

20

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

11шт.

21

700132214

PLATE

1шт.

22

700135169

STRAP

1шт.

23

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

25

700716232

GUARD

- chain

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

27

700132215

SPACER

- pivot

1шт.

28

700132220

SPACER

1шт.

29

700135161

ANGLE

2шт.

30

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

31

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

3шт.

32

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

33

700132190

AUGER

WA - left

1шт.

34

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

35

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

36

700132221

SPROCKET ASSY.

SPROCKET WA - 50B22 tooth

1шт.

37

700132223

SPACER

1шт.

38

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

39

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.
