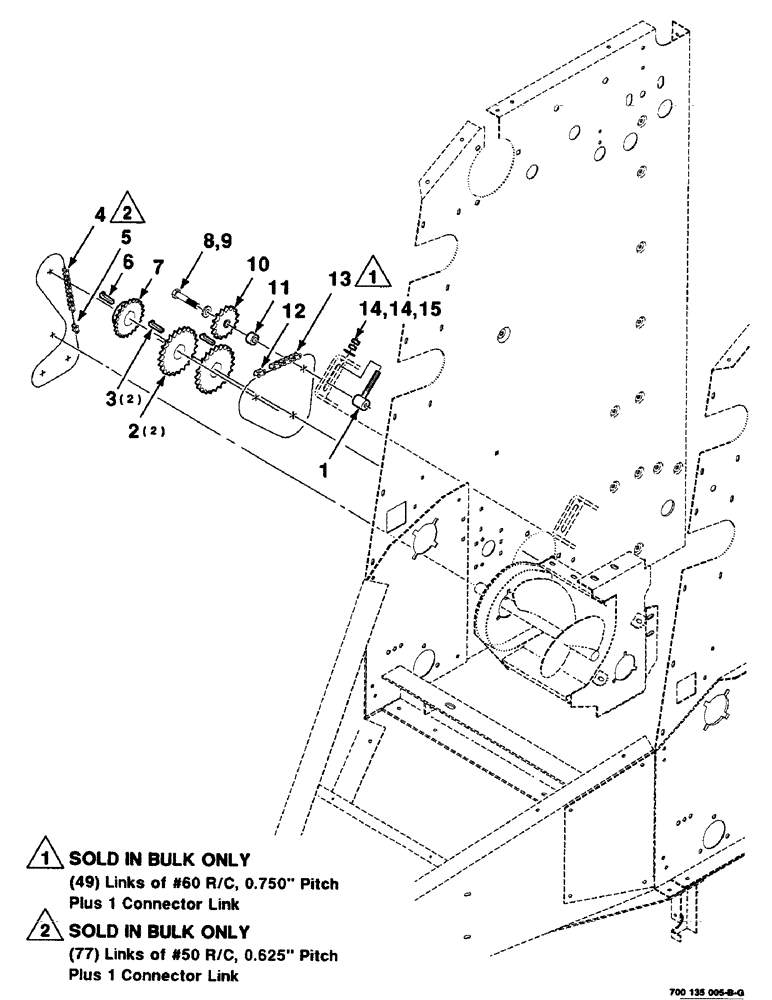

Запчасти Case IH 8435 (2-22) - AUGER DRIVE ASSEMBLY Driveline

1

700135058

SPECIAL BOLT

DRAWBOLT WA

1шт.

2

700135131

SPROCKET ASSY.

SPROCKET WA - 60B23 tooth

2шт.

3

61747

KEY

1/2 X 2-1/2 GIB KEY

2шт.

4

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

5

241-1315

LINK, CONNECTING

LINK - connector, 50#

1шт.

6

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 X 1-1/2 GIB KEY

1шт.

7

700132455

SPROCKET ASSY.

SPROCKET WA - 50B22 tooth (S.N. CFH0124001 thru CFH0124137)

1шт.

700147547

SPROCKET ASSY.

SPROCKET WA - 50B25 tooth (S.N. CFH0124401 and later)

1шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

10

541857R92

SPROCKET,15T

IDLER - sprocket, 15 tooth

1шт.

11

6619274

BUSHING

1шт.

12

241-1316

LINK,19.05mm Pitch

LINK - connector, #60

1шт.

13

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.
