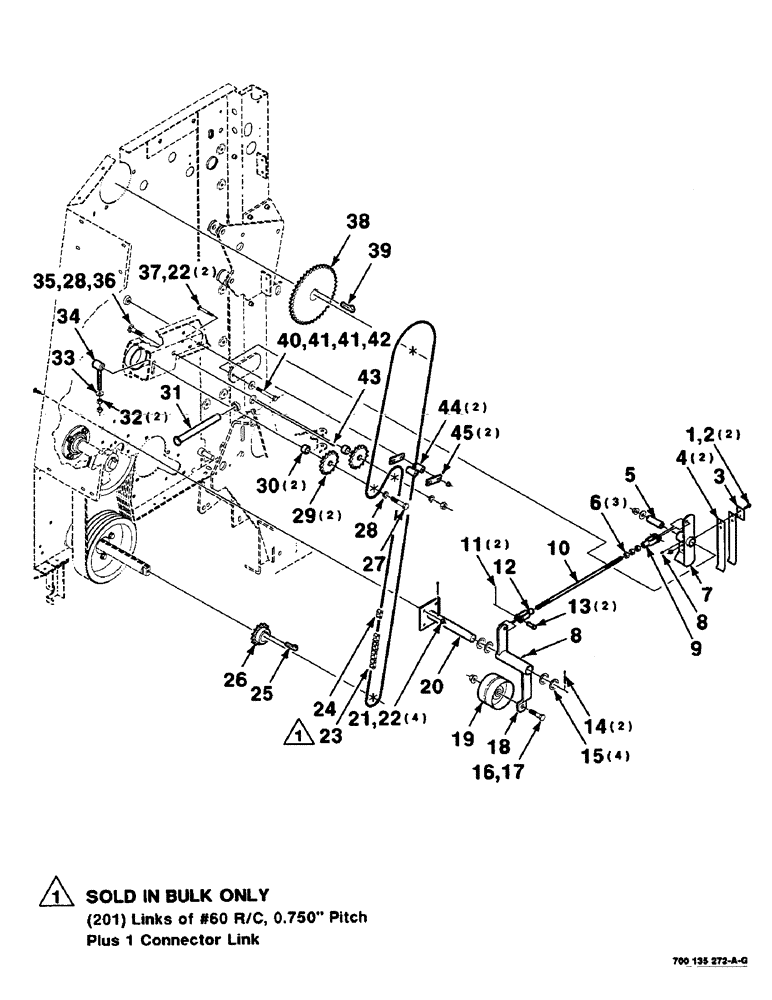

Запчасти Case IH 8435 (2-20) - DRIVE ASSEMBLY, SERIAL NUMBER CFH0124401 AND LATER Driveline

1

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

3

700135054

PLATE

1шт.

4

700716006

SPRING

- leaf

2шт.

5

700135052

TUBE,25.4 mm OD, 71.5 mm Length

1шт.

6

425-118

NUT,1/2"-20, G5

1/2-20 H

3шт.

7

700135048

LEVER

WA

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

9

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, ADJUSTABLE, 1/2"-20 x 3"

1шт.

10

700135047

ROD

1шт.

11

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

12

766063

CLEVIS

1/2-20 UNF - LH clevis

1шт.

13

63677

WASHER

1/2 X 1-27/64 CLEVIS PIN

2шт.

14

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

15

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

4шт.

16

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

17

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

18

700135039

SUPPORT

WA

1шт.

19

700716004

PULLEY

IDLER - flat

1шт.

20

700135043

SUPPORT

WA

1шт.

21

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

23

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

24

241-1316

LINK,19.05mm Pitch

LINK - connector, #60

1шт.

25

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 X 1-3/4 GIB KEY

1шт.

26

7850720

PINION

SPROCKET - 60B14 tooth

1шт.

27

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

29

541857R92

SPROCKET,15T

IDLER - sprocket, 15 tooth

2шт.

30

6619274

BUSHING

2шт.

31

700135055

PLUNGER

WA

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

33

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

34

700135548

SPECIAL BOLT

DRAWBOLT WA

1шт.

35

433-1044

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 X 2-3/4 RHSNB

1шт.

36

425-1010

NUT,5/8"-11, G5

1шт.

37

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

3/8-16 X 3 RHSNB

2шт.

38

700135033

SPROCKET ASSY.

SPROCKET WA - 60B42 tooth

1шт.

39

861088

BUCKET TOOTH KEY

1/2 X 2 GIB KEY

1шт.

40

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

1шт.

41

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

42

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

43

219-11

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Extended 1/4"-28 NPT x .94" lg

1шт.

44

700716908

GUIDE

- chain

2шт.

45

700716907

PLATE

- guide

2шт.
