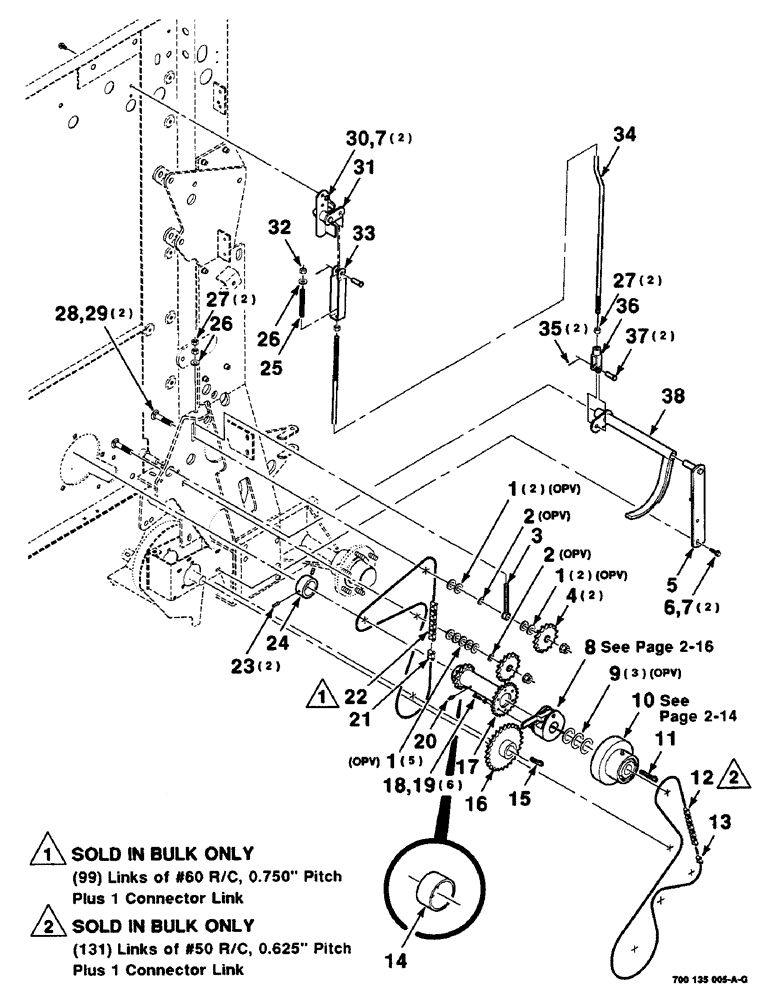

Запчасти Case IH 8435 (2-10) - ROLLER DRIVE ASSEMBLY, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 Driveline

1

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

9шт.

2

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

3

140319

BOLT,1/2" - 13 x 5"

BOLT - eye

1шт.

4

541857R92

SPROCKET,15T

IDLER - sprocket, 15 tooth

2шт.

5

700135025

SUPPORT

WA

1шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

8

700134911

HUB

ASSEMBLY

1шт.

9

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

3шт.

10

700133291

CLUTCH

ASSEMBLY

1шт.

11

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

5/16 X 2-1/2 GIB KEY

1шт.

12

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

13

241-1315

LINK, CONNECTING

LINK - connector, #50

1шт.

14

700715085

BRONZE BUSHING

BUSHING - bronze

1шт.

15

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 GIB KEY

1шт.

16

700132441

SPROCKET ASSY.

SPROCKET WA - 60B26 tooth

1шт.

17

700132437

SPROCKET ASSY.

SPROCKET WA - 22 and 13 tooth (includes item 14)

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

241-1316

LINK,19.05mm Pitch

LINK - connector, #60

1шт.

22

7086002

CHAIN (AG)

ROLLER CHAIN - #60 (10 foot bulk)

1шт.

23

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPHSSS NP

2шт.

24

700132452

COLLAR

1шт.

25

858027

COMPRESSION SPRING

SPRING - compression

1шт.

26

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, FTLN GR/G 1/2"-13, G5

4шт.

28

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 RHSNB

2шт.

29

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

31

700132447

LEVER

WA

1шт.

32

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

1шт.

33

700132453

CLEVIS

1шт.

34

700135027

ROD

1шт.

35

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

36

66183

SHAFT

1шт.

37

63677

WASHER

1/2 X 1-27/64 CLEVIS PIN

2шт.

38

700132442

LEVER

WA

1шт.
