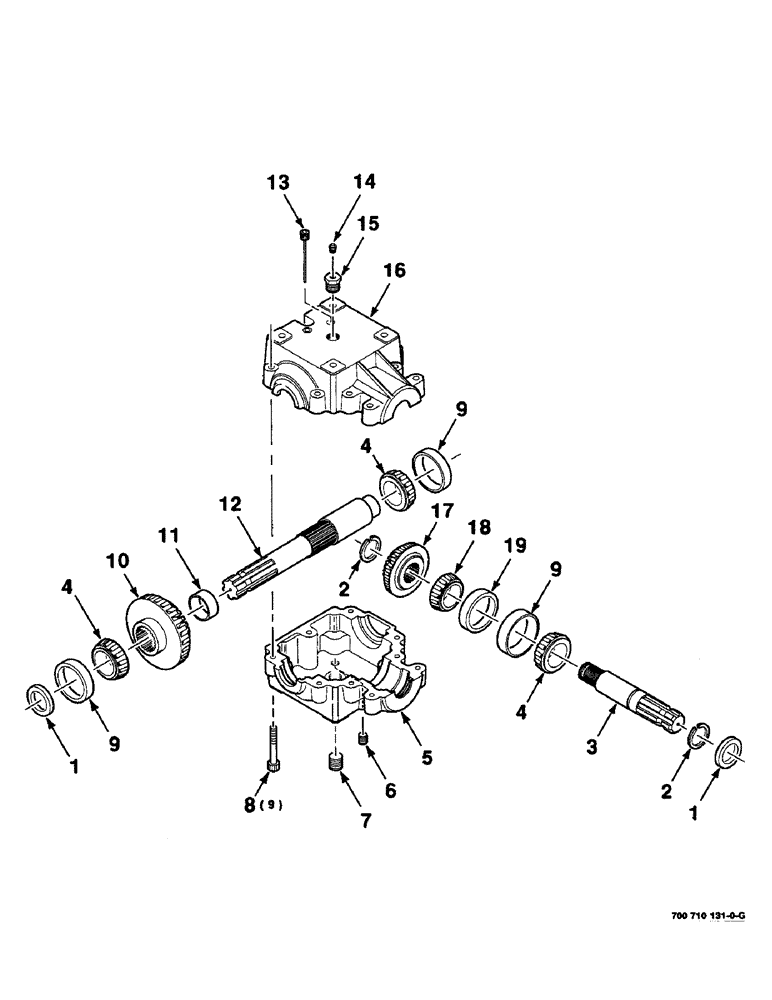

Запчасти Case IH 8435 (2-06) - GEARBOX ASSEMBLY, 700710131 GEARBOX ASSEMBLY COMPLETE Driveline

700710131

TRANSFER BOX

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700710827

SEAL

2шт.

2

700710828

OIL SEAL

RING - retaining

2шт.

3

700710815

PINION

SHAFT - pinion

1шт.

4

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

BEARING - cone, tapered

3шт.

5

700710824

CASTING

(thru holes)

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

7

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2 NPT SOLID PLUG

1шт.

8

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS

9шт.

9

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

10

700710821

GEAR

(27 tooth)

1шт.

11

700710820

SPACER

1шт.

12

700710816

CROSS SHAFT

SHAFT - cross

1шт.

13

700710819

DIPSTICK

1шт.

14

700710818

VALVE

BREATHER

1шт.

15

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/2-1/8 NPT REDUCER BUSHING

1шт.

16

700710825

CASTING

(tapped holes)

1шт.

17

700710823

GEAR

(20 tooth)

1шт.

18

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - cone, tapered

1шт.

19

165964R1

BEARING CUP

CUP - bearing

1шт.
