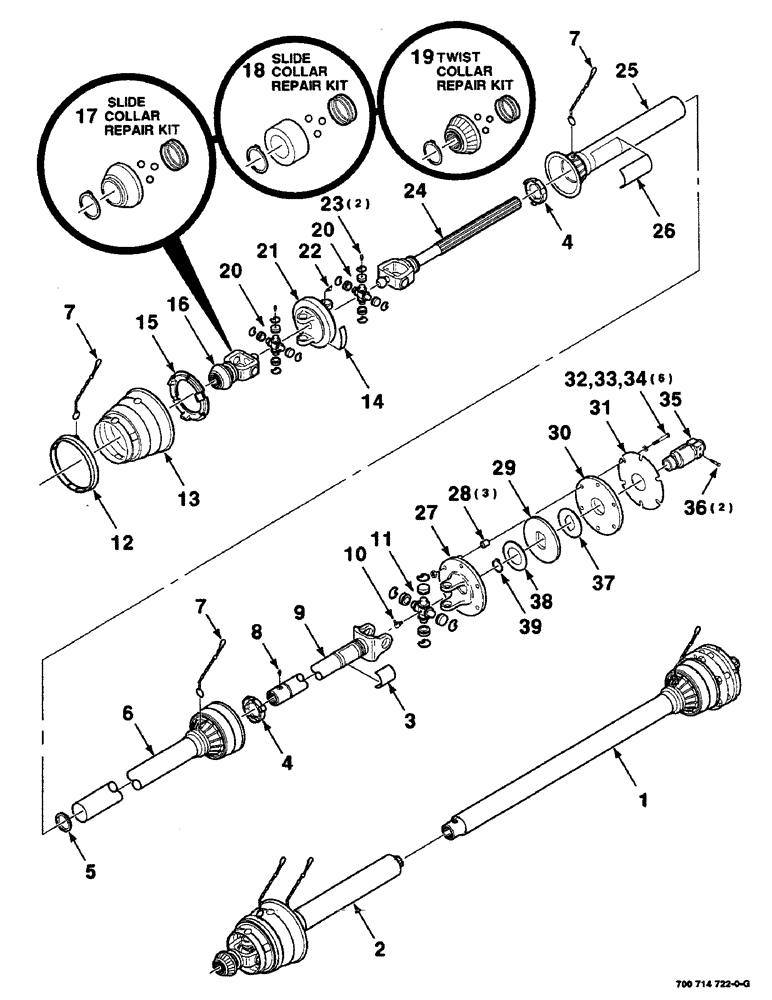

Запчасти Case IH 8435 (2-04) - DRIVELINE ASSEMBLY, NEAPCO Driveline

1

700714724

PTO

HALF ASSEMBLY - implement

1шт.

2

700716994

PTO

HALF ASSEMBLY - tractor

1шт.

3

80672C1

DECAL

- danger

1шт.

4

700713781

GUARD

BEARING - shield

2шт.

5

700709718

NYLON BEARING

BEARING - nylon

1шт.

6

700714294

GUARD

SHIELD - inner

1шт.

7

700714256

CHAIN (AG)

CHAIN

3шт.

8

700713833

LUBE NIPPLE,3/16" x 25/64", drivetech

NIPPLE, LUBE, 3/16" x 25/64", drivetech

1шт.

9

700714286

YOKE

TUBE, & SLEEVE

1шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65° ZERK

1шт.

11

845198

KIT

CROSS AND BEARING KIT (includes item 10)

1шт.

12

700713774

RING, SNAP

RING - outer

1шт.

13

700717237

CONE

1шт.

14

700714285

DECAL

LABEL - CV danger

1шт.

15

700713775

COLLAR

BEARING

1шт.

16

700713772

COLLAR

YOKE - slide collar q.d. (1-3/8 x 6 spline) (includes item 17)

1шт.

700713788

YOKE

- slide collar q.d. (1-3/8 x 21 spline) (includes item 17)

1шт.

700714128

BODY

YOKE - slide collar q.d. (1-3/4 x 20 spline) (includes item 18)

1шт.

700715632

PTO

YOKE - twist collar q.d. (1-3/8 x 21 spline) (includes item 19)

1шт.

17

700714200

KIT

REPAIR KIT - slide collar q.d.

1шт.

18

700714002

PACKAGE

REPAIR KIT - slide collar q.d.

1шт.

19

700714726

KIT

TWIST COLLAR KIT

1шт.

20

700713773

KIT

CROSS AND BEARING KIT (includes item 22)

2шт.

21

700713777

HOUSING

ASSEMBLY

1шт.

22

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45° ZERK

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

24

700713786

YOKE

AND SHAFT

1шт.

25

700716311

SHIELD

- outer

1шт.

26

1326528C1

DECAL

- danger

1шт.

27

700714729

YOKE

- flange

1шт.

28

700714737

GUIDE

3шт.

29

700714730

SEAL PACKAGE

BONDED FRICTION PAD

1шт.

30

700714731

PLATE

1шт.

31

700714732

SPRING

- Belville

1шт.

32

700714734

BOLT

7/16-14 X 3-1/4 C

6шт.

33

700714738

WASHER

7/16 FLAT WASHER

6шт.

34

230-4217

LOCK NUT,7/16"-14, GA

7/16-14 HCLN

6шт.

35

700714735

HUB

- drive

1шт.

36

700714736

BOLT

1/2-20 X 2-1/4 C GR 8

2шт.

37

700715675

WASHER

FLAT WASHER

1шт.

38

700715676

WASHER

FLAT WASHER

1шт.

39

700715677

WASHER

LOCK RING

1шт.
