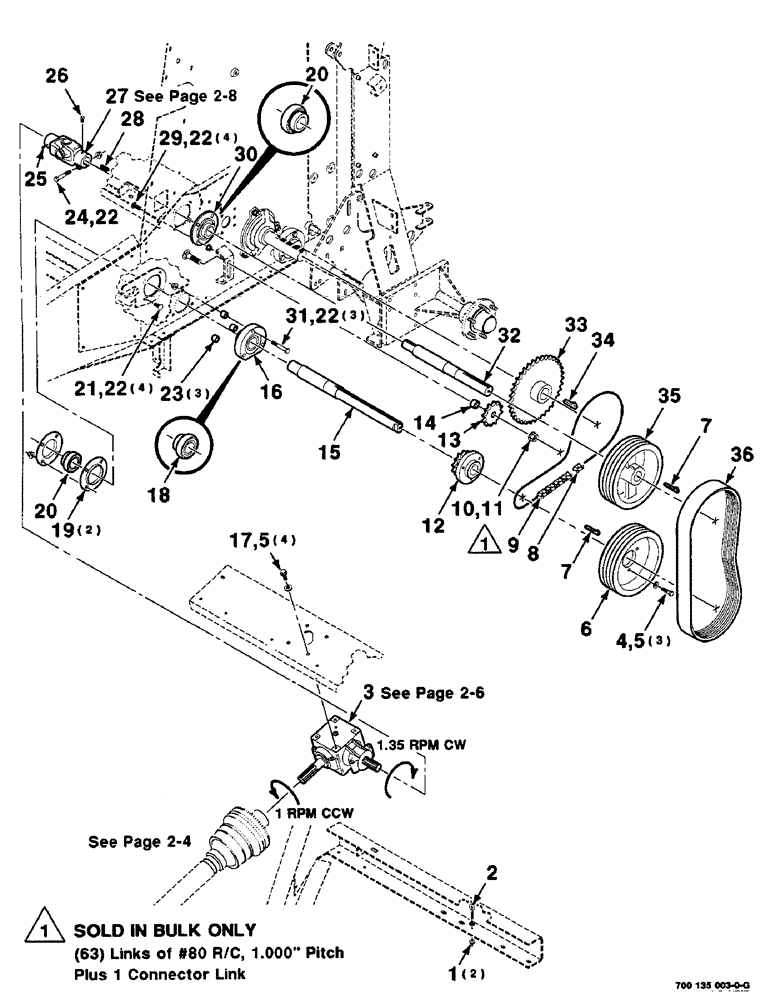

Запчасти Case IH 8435 (2-02) - MAIN DRIVE ASSEMBLY Driveline

1

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

2

866061

EYEBOLT

1шт.

3

700710131

TRANSFER BOX

GEARBOX ASSEMBLY

1шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

7шт.

6

700135028

SHEAVE

- 4 groove

1шт.

7

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 X 2-1/2 KEY - gib

2шт.

8

241-1418

SPRING CLIP

LINK - connector #80

1шт.

9

654437R91

CHAIN (AG)

CHAIN - roller, #80 (10 foot bulk)

1шт.

10

11-1248

CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2

3/4-10 X 3 RHSNB

1шт.

11

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

12

700135030

SPROCKET ASSY.

SPROCKET WA - 80B12 tooth

1шт.

13

51200277

SPROCKET ASSY.

SPROCKET - idler, 12 tooth

1шт.

14

6344105

SPACER

BUSHING

1шт.

15

700135022

SHAFT

- lower

1шт.

16

700135023

HOUSING

ASSEMBLY - bearing (includes item 18)

1шт.

17

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

18

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

19

50583

FLANGED BEARING

2шт.

20

51318

BEARING

- spherical

2шт.

21

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

12шт.

23

6531362

BUSHING

3шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

26

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPSQHSS

1шт.

27

700714791

YOKE

U-JOINT ASM, SINGLE

1шт.

28

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 X 5/16 X 1-1/2 KEY

1шт.

29

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

30

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY - 85mm (includes item 20)

1шт.

31

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

3шт.

32

700135021

SHAFT

- upper

1шт.

33

700135032

SPROCKET ASSY.

SPROCKET WA - 80B36 tooth

1шт.

34

861088

BUCKET TOOTH KEY

1/2 X 2 KEY - gib

1шт.

35

700135029

SHEAVE

- 4 groove

1шт.

36

700716005

BELT

- 4 groove power band

1шт.
