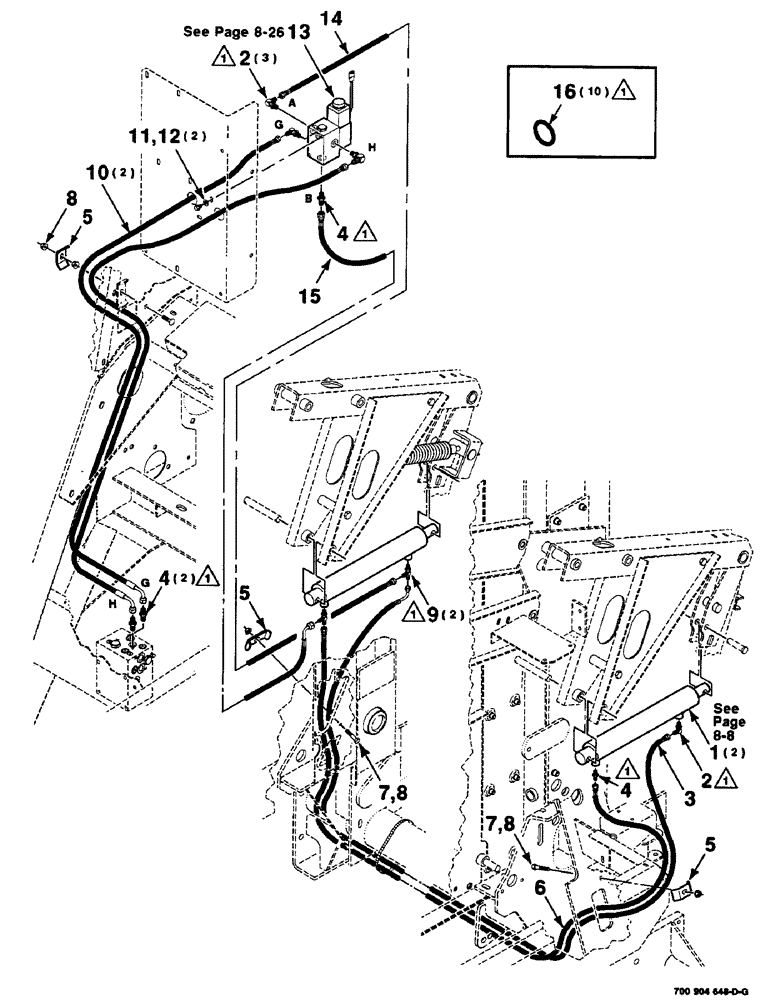

Запчасти Case IH 8435 (9-24) - BALE EJECTOR KIT, HYDRAULIC ASSEMBLY Decals & Attachments

1

700714707

CYLINDER

ASSEMBLY - hydraulic

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 DEGREE ELBOW (includes item 16)

4шт.

3

700714809

HOSE

- hydraulic

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short str thread (includes item 16)

4шт.

5

700120636

CLAMP

3шт.

6

700714825

HYDRAULIC HOSE,0.38" ID x 131.89", SAE J516, SAE J343

HOSE - hydraulic

1шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

9

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 16) 9/16"-18, 37º x 9/16"-18, O-Ring Run

2шт.

10

700714803

HOSE

- hydraulic

2шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

13

700714785

MANIFOLD

VALVE ASSEMBLY

1шт.

14

700714805

HYDRAULIC HOSE,0.38" ID x 27.17", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

15

700714807

HOSE

- hydraulic

1шт.

16

738468

O-RING

10шт.
