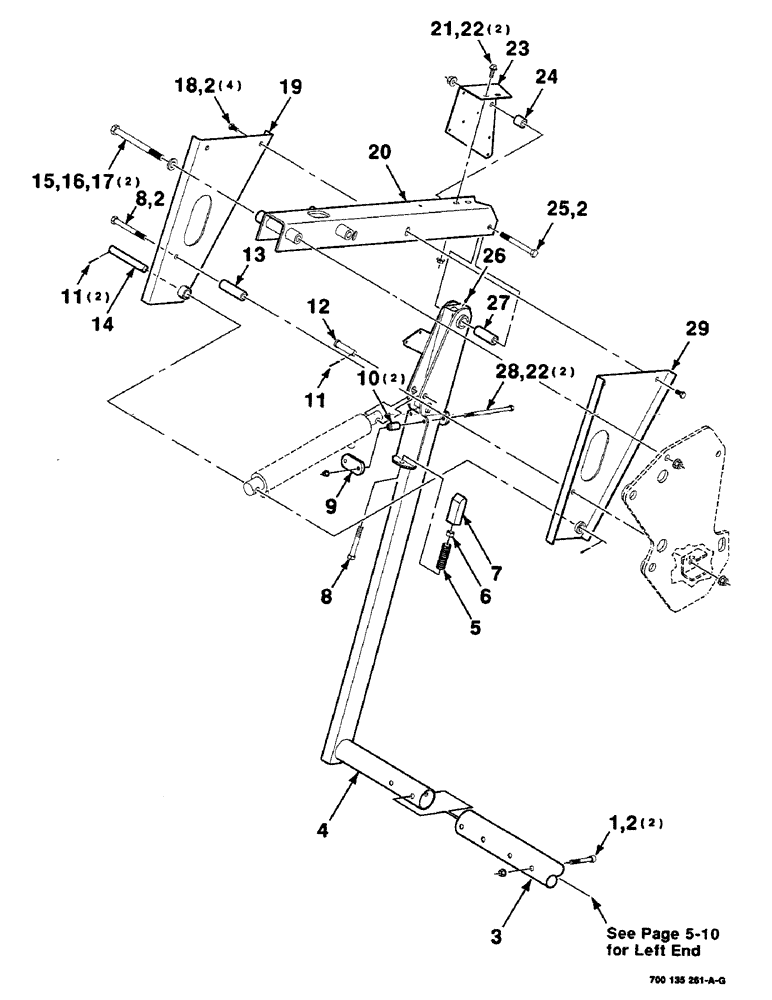

Запчасти Case IH 8435 (5-08) - EJECTOR AND SUPPORT ASSEMBLIES, RIGHT, SERIAL NUMBER CFH0124401 AND LATER (16) - BALE EJECTOR

1

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPL

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

3

700135973

TUBE,2.672" ID, 2.875" OD, 1510 mm Length

- ejector

1шт.

4

700135972

STRUT

WA - right

1шт.

5

700716851

SPRING

- compression

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

700135979

LATCH

1шт.

8

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

9

700135976

PLATE

1шт.

10

700135978

SPACER

2шт.

11

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

3шт.

12

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

1шт.

13

140186

ASSEMBLING ROD

1шт.

14

700132165

PIN

1шт.

15

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 X 7 C

2шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

17

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

19

700136056

CHANNEL

WA - right

1шт.

20

700136054

CHANNEL

WA - right

1шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

23

700136057

SUPPORT

- switch

1шт.

24

6181002

SPACER

1шт.

25

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

27

700132166

SPACER

1шт.

28

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

2шт.

29

700136055

CHANNEL

WA - left

1шт.
