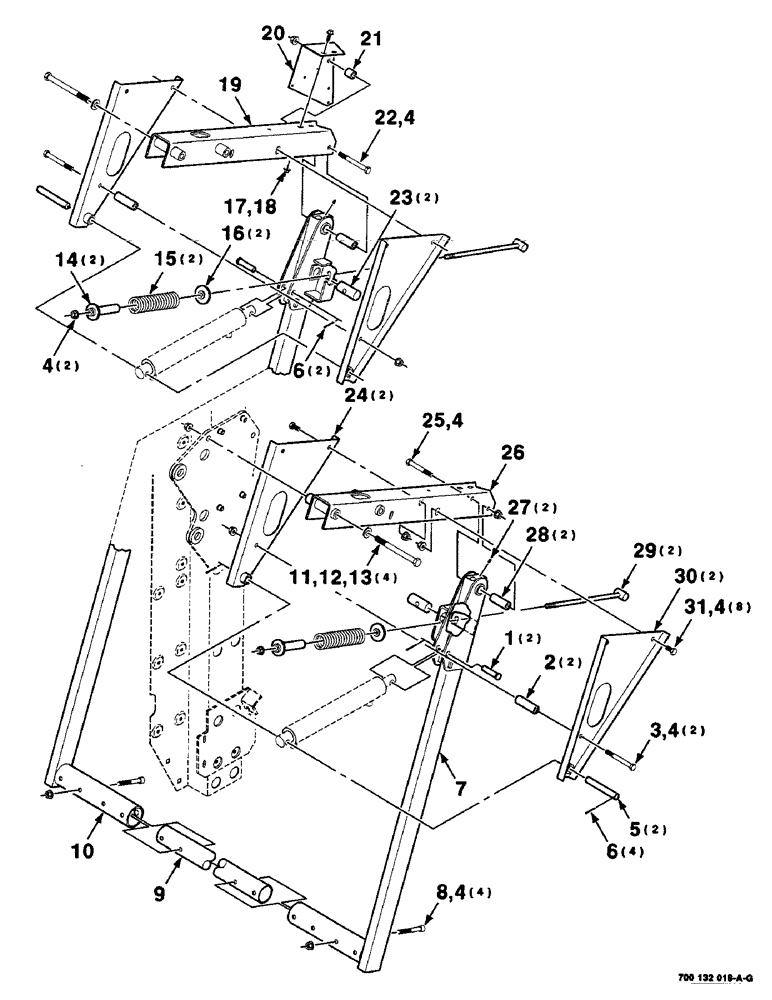

Запчасти Case IH 8435 (5-06) - EJECTOR AND SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (16) - BALE EJECTOR

1

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

2шт.

2

140186

ASSEMBLING ROD

2шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

18шт.

5

700132165

PIN

2шт.

6

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

6шт.

7

700132139

STRUT

WA - left

1шт.

8

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS SPECIAL

4шт.

9

700132164

TUBE,60.32 mm OD, 1518 mm Length

- ejector

1шт.

10

700132145

STRUT

WA - right

1шт.

11

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

5/8-11 X 7 C

4шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

13

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

4шт.

14

700132161

GUIDE

WA

2шт.

15

700715697

SPRING

- compression

2шт.

16

700132157

GUIDE

PILOT

2шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

18

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

19

700132149

CHANNEL

WA - right

1шт.

20

700132162

SUPPORT

- switch

1шт.

21

6181002

SPACER

1шт.

22

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

23

700132160

PIN

2шт.

24

700132152

CHANNEL

WA - right

2шт.

25

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

26

700132146

CHANNEL

WA - left

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

28

700132166

SPACER

2шт.

29

700132154

ROD

WA

2шт.

30

700132150

CHANNEL

WA - left

2шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.
