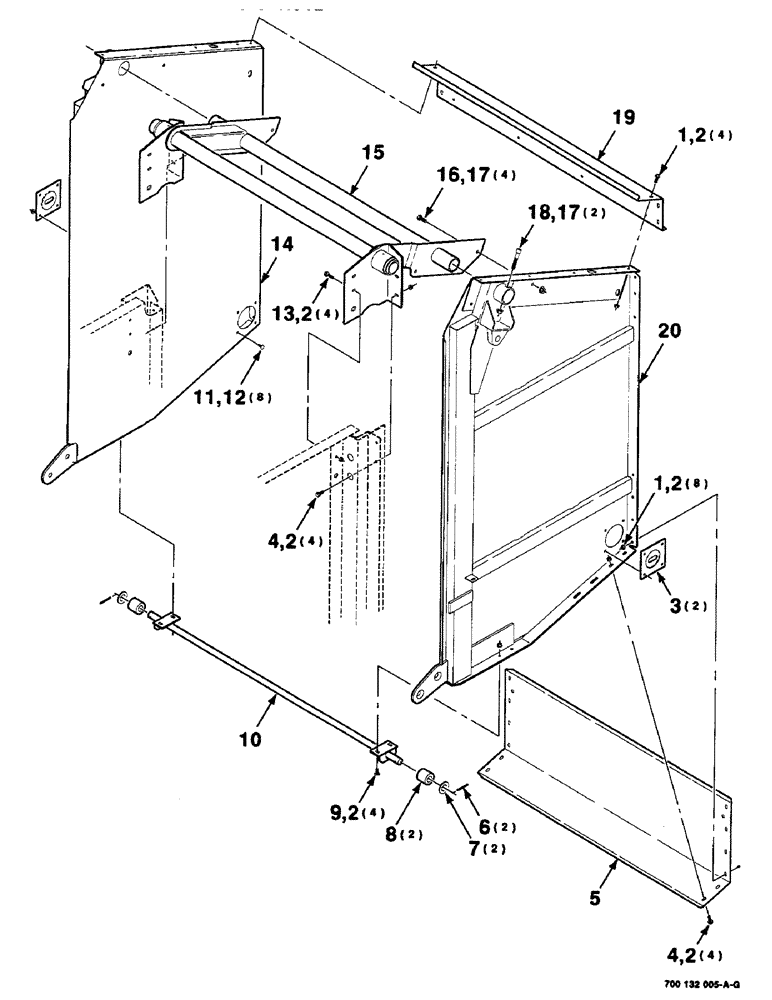

Запчасти Case IH 8435 (5-02) - TAILGATE AND SUPPORT ASSEMBLIES, SERIAL NUMBER CFH0124001 THROUGH CFH0124137 (16) - BALE EJECTOR

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

12шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

28шт.

3

700125148

PLUG

2шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

5

700132077

SUPPORT

- lower

1шт.

6

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

2шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

8

700132082

BUSHING

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

10

700132078

SHAFT

WA

1шт.

11

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

8шт.

13

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

4шт.

14

700132056

SIDE ASSY.

SIDE WA - tailgate, right

1шт.

15

700132062

SUPPORT

WA - tailgate

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

18

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS, special

2шт.

19

700132075

SUPPORT

- upper

1шт.

20

700132042

SIDE ASSY.

SIDE WA - tailgate, left

1шт.
