(9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL

Запчасти Case IH 8435 (9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments

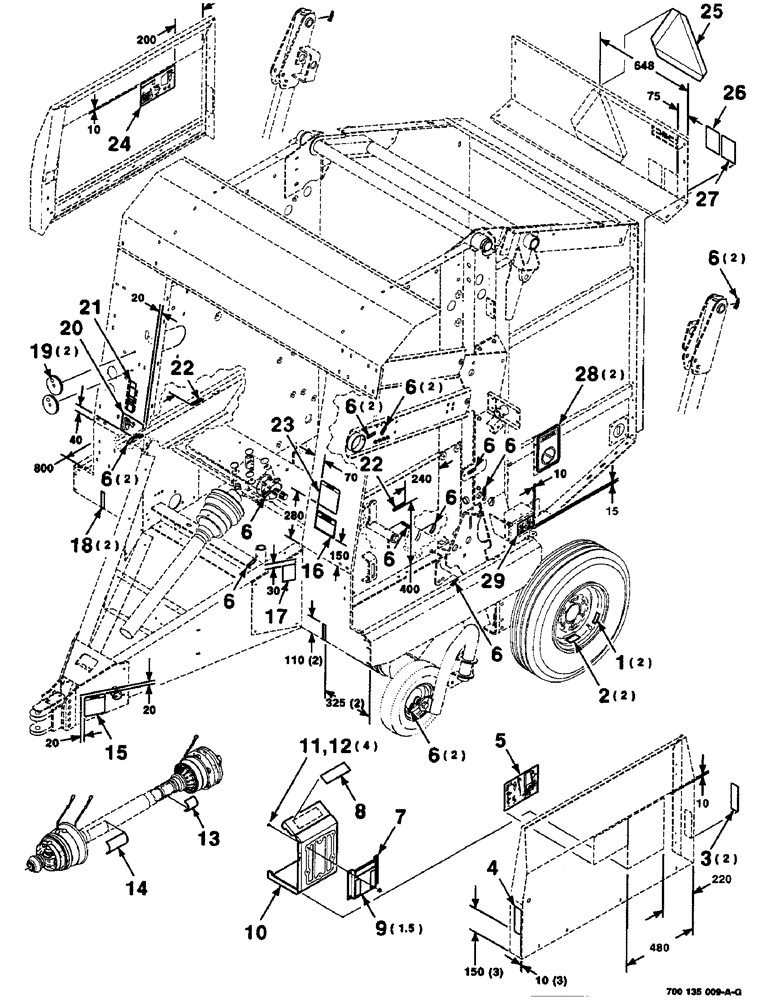

Схема запчастей Case IH 8435 - (9-04) - DECALS AND LOCATION DIAGRAM, OPERATIONAL Decals & Attachments
6
5
26
1
20
2
3
21
16
6
8
19
13
23
28
29
18
22
6
6
12
6
17
6
6
9
6
7
10
4
6
14
27
11
24
6
6
6
22
15
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

779694

DECAL

- tire pressure

2шт.

2

7079387

DECAL

- notice

2шт.

3

878660

REFLECTOR

- red

2шт.

4

878694

REFLECTOR

- amber

1шт.

5

700716935

DECAL

- routing

1шт.

6

7889306

DECAL

- lube

17шт.

7

700131827

HOLDER

MOUNT - holder, manual (S.N. CFH0124401 thru CFH0124137)

1шт.

8

700714585

DECAL

- manual holder

1шт.

9

700714617

TAPE

- double (S.N. CFH0124401 thru CFH0124137)

1.5шт.

10

700714418

HOLDER

- manual

1шт.

11

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 X 1/2 CRPHMS GR60M

4шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

13

80672C1

DECAL

- danger

1шт.

14

1326528C1

DECAL

- danger

1шт.

15

878157

DECAL

- notice

1шт.

16

700714229

DECAL

- warning

1шт.

17

7179641

DECAL

- patent

1шт.

18

700716906

DECAL

- indicator, tine

2шт.

19

700716046

DECAL

- pulley

2шт.

20

700716021

DECAL

- information

1шт.

21

700716009

DECAL

- bale size

1шт.

22

7778202

DECAL

- oil chains

2шт.

23

700709165

DECAL

- notice, fire

1шт.

24

700716015

DECAL

- routing

1шт.

25

311858A1

DECAL

SMV EMBLEM

1шт.

26

700718802

DECAL

- warning

1шт.

27

700717680

DECAL

- warning

1шт.

28

700707871

DECAL

- danger

2шт.

29

700714957

DECAL

- lockout

1шт.
